Description

Fits

Year	Make	Engine
1989-1998	Dodge Ram	12V 5.9 Cummins



This Heater Core kit from Fleece replaces your old, leaking, or corroded heater tubes with stainless steel tubes & high-temperature silicone; everything you need to replace your heater lines from the block to the firewall. It is a direct replacement for the Cummins trucks that were originally equipped with A/C.

Part Number: FPE-CUMM-SSHCL-12V

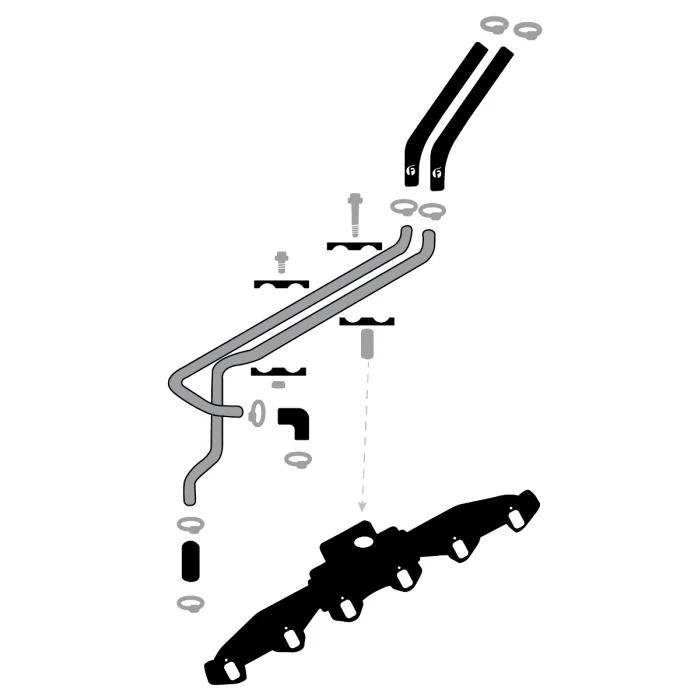

Features

• Stainless steel heater tube - replaces Cummins 3912086
• Stainless steel heater tube - replaces Cummins 3912087
• Silicone heater hose (straight tube to block) - replaces Cummins 3931522
• Silicone heater hose (90 deg tube to block) - replaces Cummins 3957649
• Silicone heater hoses (45 deg tubes to firewall)
• Anodized billet aluminum hold down clamps, billet aluminum standoff, and mounting hardware for both stock and aftermarket manifolds
• Hose clamp

Notes

• This kit is intended for use with trucks originally equipped with air-conditioning. If your truck is not equipped with air conditioning, you will need to supply your own 5/8” ID hose to run from the firewall ports to the stainless steel heater lines.
• The silicone heater hose (tube to firewall) may require trimming for certain applications or to accommodate modifications made previously to the engine.
• If your truck is equipped with an aftermarket exhaust manifold, the rear heater line standoff will not be utilized and an additional mounting bracket is provided in the kit.
