1990-1999 Wrangler YJ/TJ Wheel Bearing Assembly (AX513084)

Product image 1
1 / 5

1990-1999 Wrangler YJ/TJ Wheel Bearing Assembly (AX513084)

Description

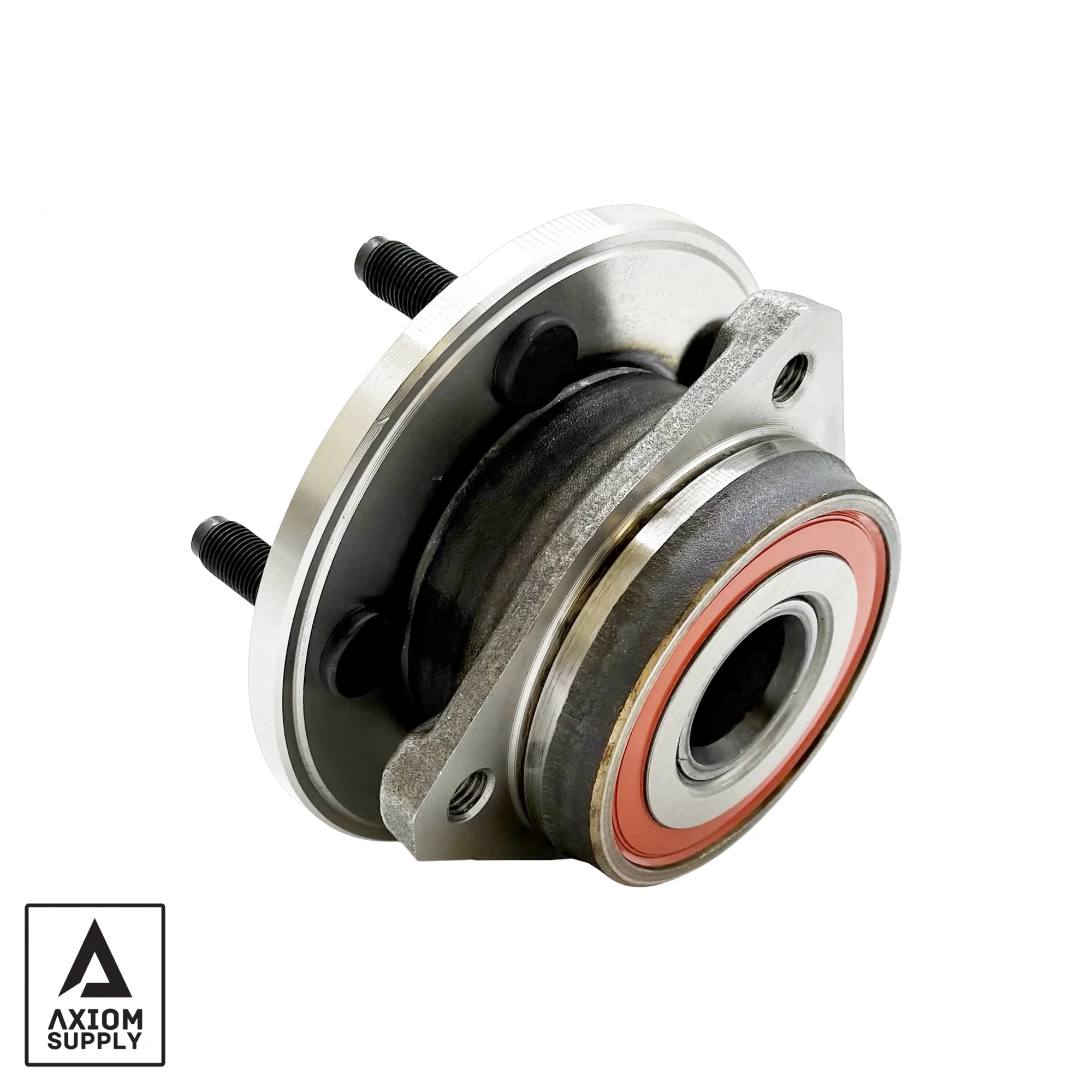

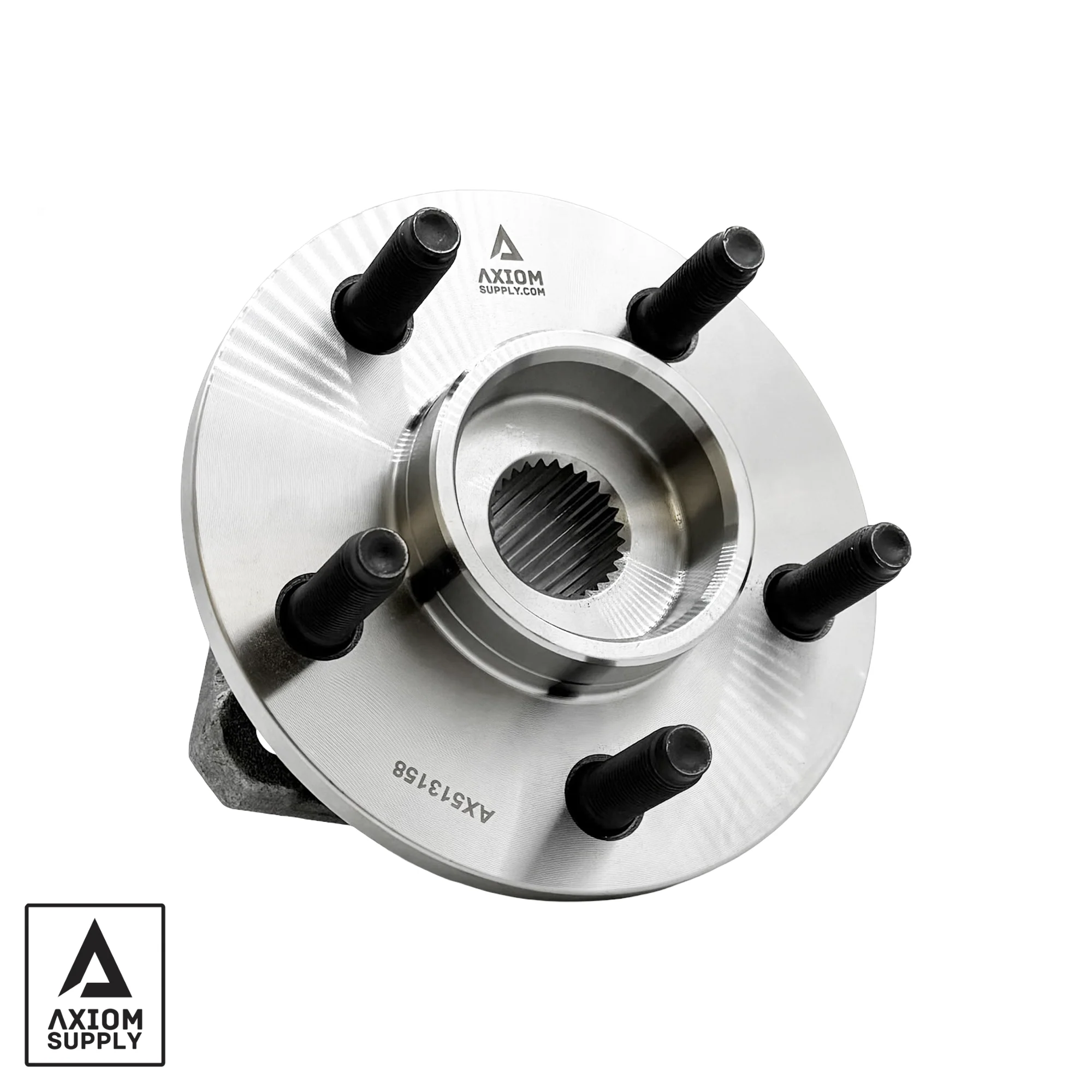

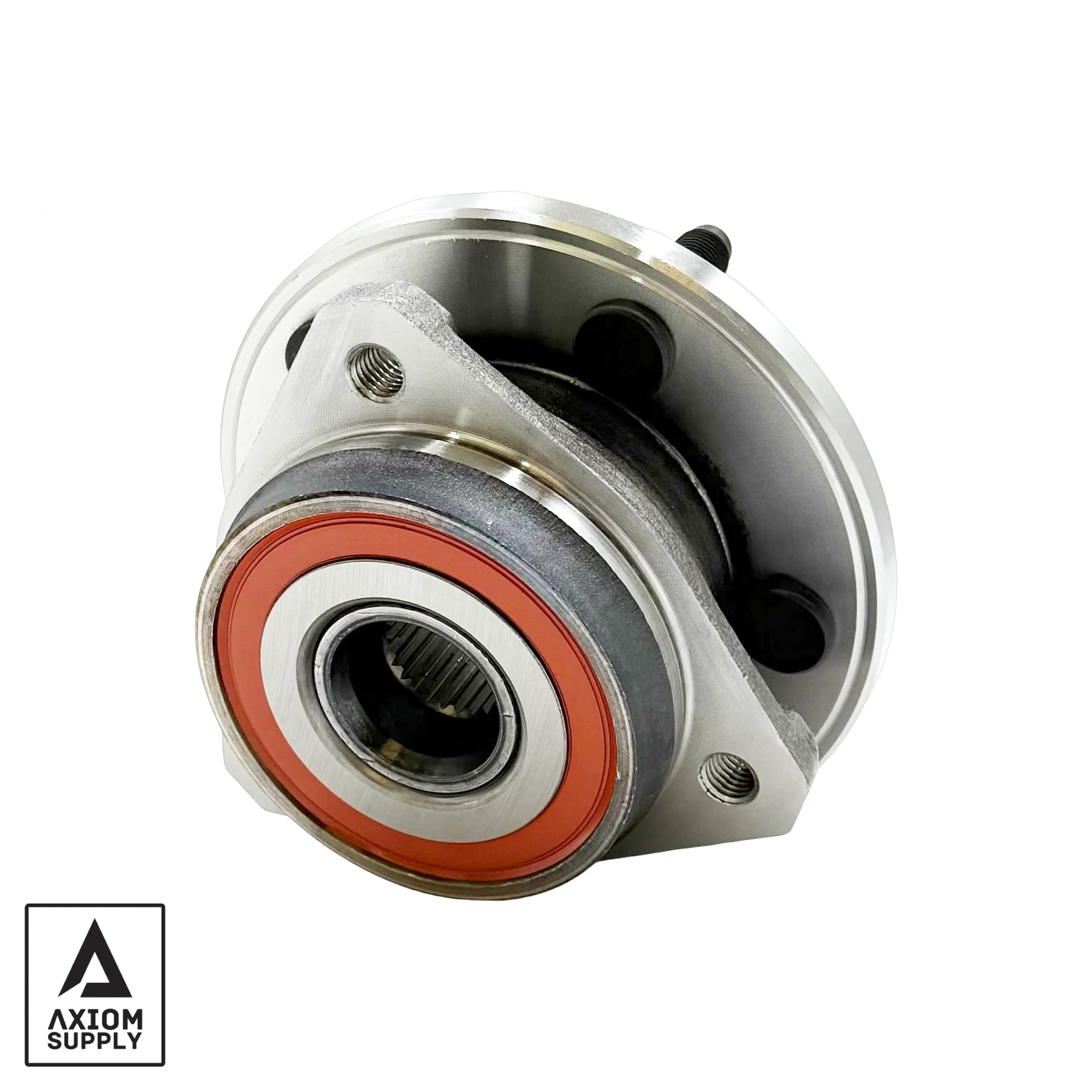

Front wheel bearing hub assembly covering a wide spread of classic Jeep platforms, from the YJ and early TJ Wranglers to the XJ Cherokee, MJ Comanche, and ZJ Grand Cherokee. The bearing and hub structure is built to reduce hub face deflection under load for tighter steering response and improved braking stability, even with oversized tires or a lifted setup. It installs as a complete bolt-in unit on either the left or right spindle, with a typical install time around 2 hours.

Part Number: AX513084

Features
  • Precision tapered roller bearings packed with high performance grease for smooth, maintenance free operation
  • Grade 8 cold formed, zinc plated wheel studs for high tensile strength and corrosion protection
  • Durable ABS sensor holds accurate signal transmission through heat, mud, and moisture
  • 5x4.5" (5x114.3) bolt pattern with 1/2"-20 lug studs
  • Fits left or right front position
  • Complete bolt-in unit, roughly 2 hour install with no special modifications
Includes
  • 1 x Wheel Bearing Hub Assembly
Notes
  • Axle nut torque: 175 lb-ft
  • Spindle bolt torque: 75 lb-ft
  • Main caliper bolt torque: 75-80 lb-ft
  • Lug nut torque: 80-100 lb-ft
Warranty
Axiom No-Nonsense Lifetime Warranty: Axiom steering and suspension components are warrantied for life to their original purchaser. This warranty is against any manufacturer defects, premature wear, or breakage. Race it, jump it, off-road it, wreck it, lift it—if you can break it, we will replace it. Axiom products must be purchased from an authorized dealer.
