Description

Fits

Year	Make	Model	Engine
1995-2003	Ford	F-Series	w/ 7.3L Powerstroke

The Edge Revolver is designed exclusively for the 7.3L Ford Powerstroke to deliver power gains up to 150 horsepower over stock via six shift-on-the-fly power levels controlled with a simple to use dash-mounted knob.  With the addition of a Revolver, you'll be able to hook up to your trailer, set your power level and tow with confidence.

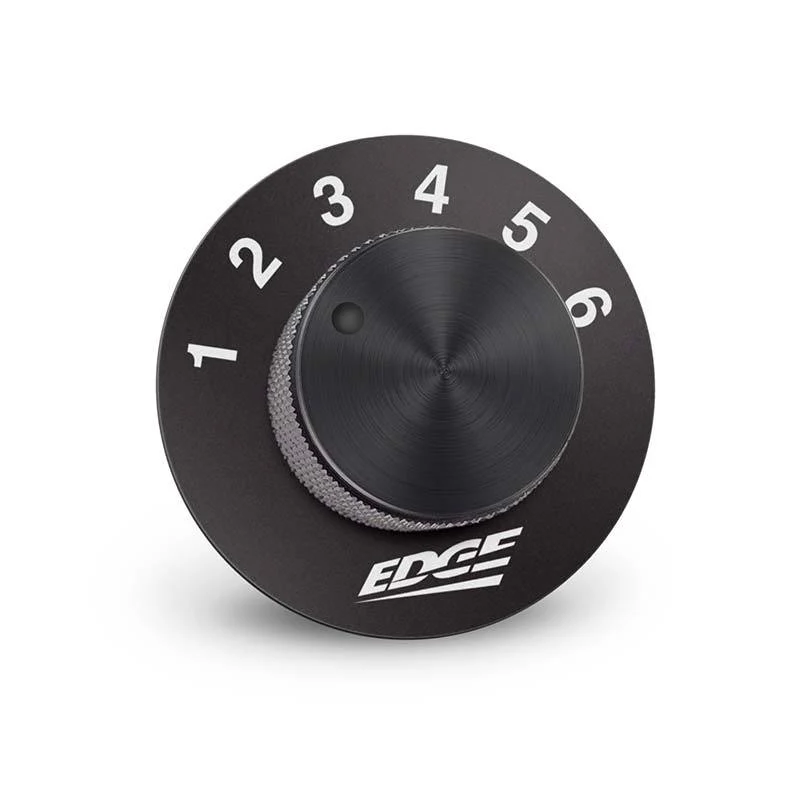

Once you unhook, change to another power level to burn the tires off or set for maximum fuel economy.  It's really that easy.  And installation is just as simple. This unit slides into your factory PCM then you run your wires to the switch location, mount the switch, and you're done.

.

Features

• Easy Installation
• Six Shift-On-The-Fly Power Levels
• Transmission Tuning for Automatic Transmission Equipped Applications
• Up To 150 Horsepower Gains Over Stock
• Increased Fuel Economy

POWER LEVELS:

1. Stock
2. High Idle (Great for winter warm-up)
3. 50 Horsepower
4. 75 Horsepower
5. 100 Horsepower
6. 150 Horsepower

Notes



• Note your PCM code and put the code in the order notes so we can ensure you receive the proper tune!

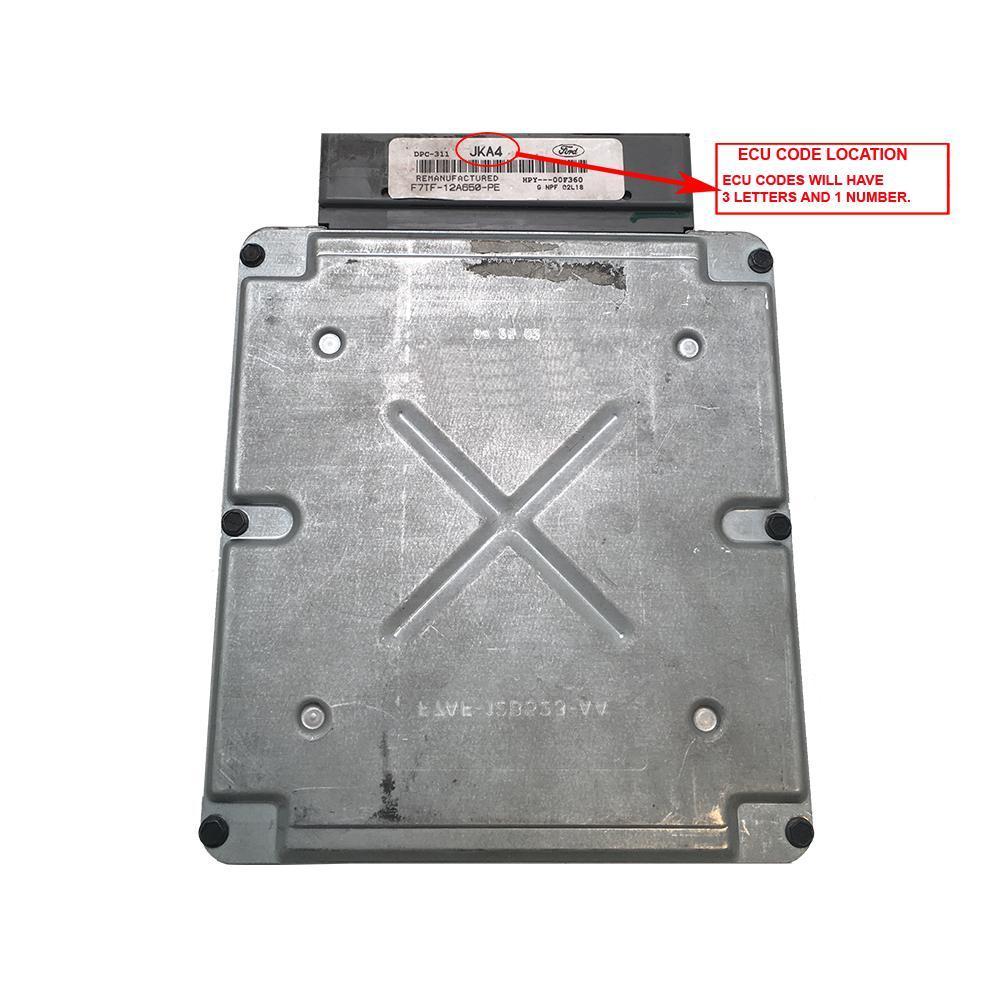

• For those with a 1999 model year and if you are uncertain as to whether it is a 1999 or 1999.5, please inspect your PCM and use the below reference to determine the correct PCM code.
• Please ensure that you select the correct option associated with your Master Box Code, if you have any questions feel free to reach out.

 PCM Info

Edge Part Number	Revolver Description	PCM Code	Support ECU Codes
14001	1995-1997 Powerstroke w/ Automatic Transmission	Master Box Code TDE1	LKM  MIF  NAW  PRE  PRY  TDE  TEE  YBT  ZAA
14002	1995-1997 Powerstroke w/ Manual Transmission	Master Box Code MLE1	ALF  AUG  BEG  GOB  MLE  SOD
14003	1999 Powerstroke w/ Automatic Transmission	Master Box Code XLE7	FUT  GLF  HPA  XLE
14004	1999 Powerstroke w/ Manual Transmission	Master Box Code AWA4	AWA  BDT  CLB  DYK
14005	1999.5-2001 Powerstroke w/ Automatic Transmission	Master Box Code NVK4	AGD  BKA  CNH  FIF  HAM  JLJ  KRK  LVS  MNM  MRT  NVK  PMT  RXM  YEV
14006	2000 Powerstroke w/ Manual Transmission	Master Box Code DAC3	BAW  BIS  DAC  NBD  QEK  VRP  VXY  XPC  ZHL
14007	2001 Powerstroke w/ Manual Transmission	Master Box Code APX1	APX  ZXG
14008	2002-2003 Powerstroke w/ Automatic Transmission	Master Box Code VDH4	BXE  KEK  NWM  PBY  PRW  TMA  VDH  VDU QLJ
14009	2002-2003 Powerstroke w/ Manual Transmission	Master Box Code AEB3	AEB  GDU
14010	2000-2001 7.3L Excursion	Master Box Code MQJ2	AVB  EBM  MQJ  NMC  UKN  AXD1
14011	2002-2003 7.3L Excursion	Master Box Code NQW2	MAP  NQW  SHT
