Description

Year	Make	Model	Engine
2001-2004	GM/Chevrolet	2500HD/3500HD	6.6L Duramax LB7

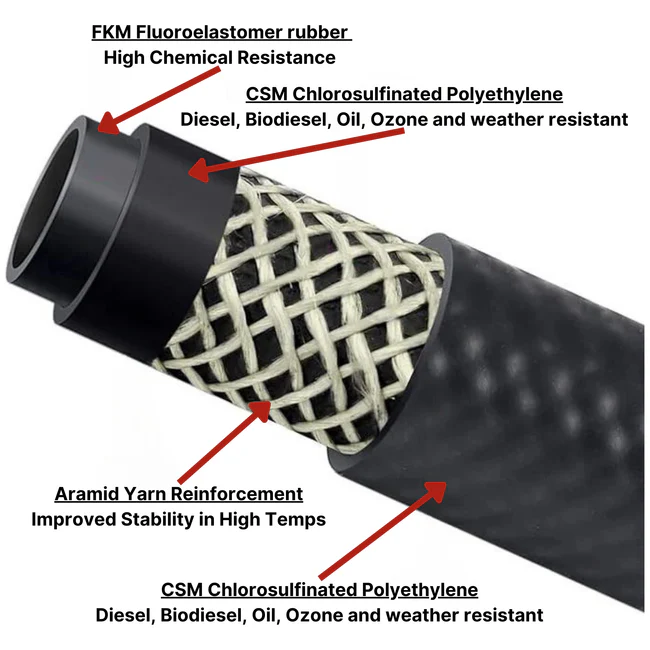

This kit replaces cracked or worn LB7 fuel injection pump hoses with a 4-layer SAE 30R9 design featuring an FKM fluoroelastomer tube and single-braid aramid reinforcement. The CSM exterior cover resists heat, ozone, and weather, while pre-formed routing makes installation easy. Operating range -30F to 257F.

Part Number: DMAX-6066+DMAX-6067

Replaces Part#:

• GM 97216066/97302699
• GM 97216067

Features

• 4-layer SAE 30R9 design with FKM fluoroelastomer tube
• Operating range: -30F to 257F (-35C to 135C)
• Compatible with diesel and biodiesel fuels
• EPA and CARB compliant
• Single-braid aramid reinforcement for dimensional stability
• CSM exterior cover resists heat, ozone, and weather
• Pre-formed for easy routing and installation
• Kit includes: 1 CP3 feed hose, 1 CP3 return hose, 4 hose clamps

Includes

• 1 Feed Hose
• 1 Return Hose
• 4 Hose Clamps
