Description

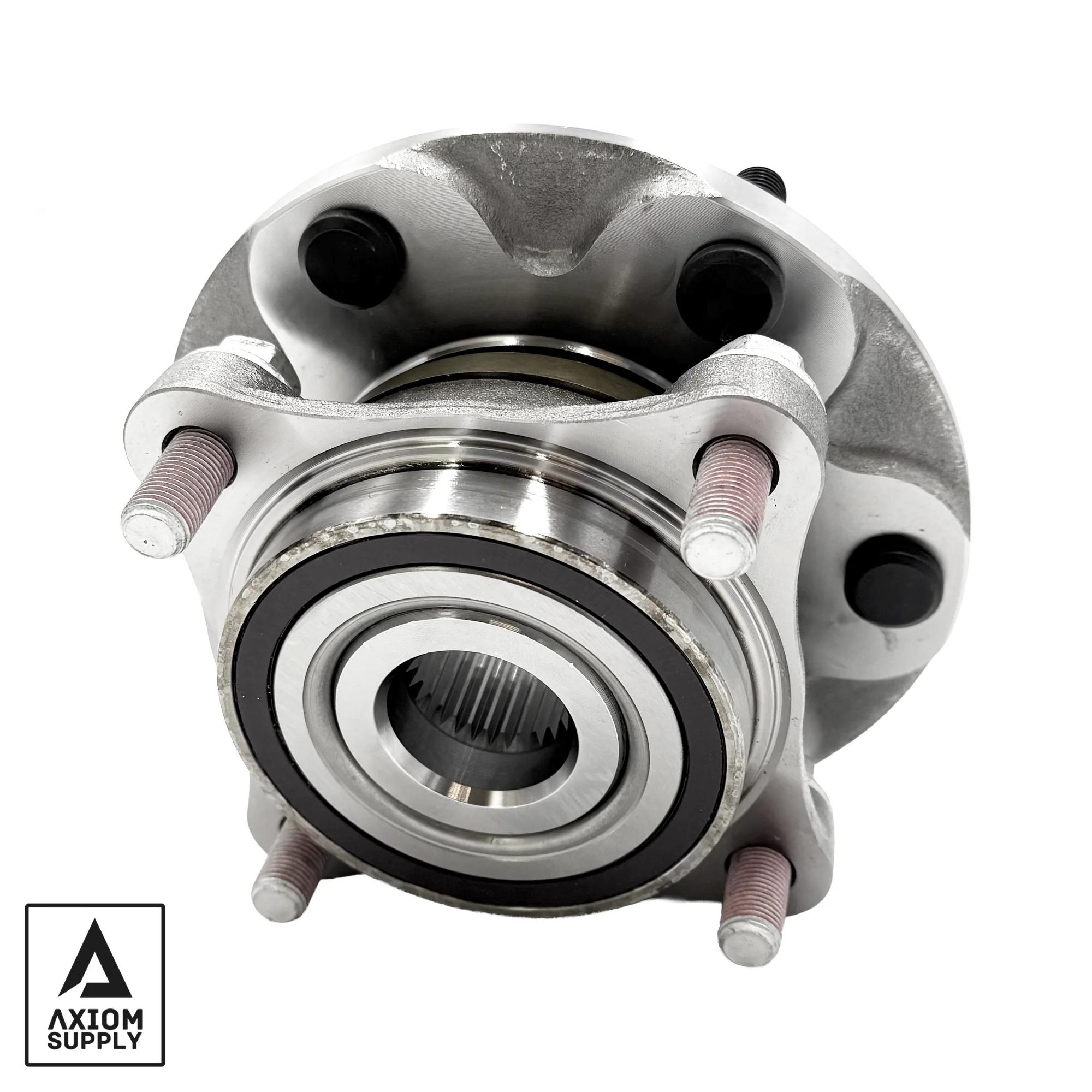

Front wheel bearing and hub assembly for Toyota's 120 and 150 series midsize truck and SUV platform, with an integrated ABS sensor and a 6x5.5" (6x139.7) bolt pattern on M12-1.50 studs. The bearing and hub structure reduces hub face deflection under load for tighter steering response and improved braking stability, whether the rig is towing, running oversized tires, or sitting on a lift. It comes as a complete bolt-in unit for either the left or right spindle, with a typical install time around 2 hours and no modifications required.

Part Number: AX515040

Features

• Precision tapered roller bearings packed with high performance grease for smooth, maintenance free operation
• Grade 10.9 cold formed, zinc plated wheel studs for high tensile strength and corrosion protection
• Durable ABS sensor holds accurate signal transmission through heat, mud, and moisture
• Rolled inner spindle design accommodates both 2WD and 4WD systems
• 6x5.5" (6x139.7) bolt pattern with M12-1.50 lug studs
• Fits left or right front position
• Complete bolt-in unit, roughly 2 hour install with no special modifications

Includes

• 1 x Wheel Bearing & Hub Assembly with integrated ABS wire

Notes

• Axle nut torque: 173-217 ft-lbs depending on exact application
• Spindle bolt torque: 59-70 ft-lbs depending on platform and model year
• Main caliper bolt torque: 91 ft-lbs
• Wheel lug nut torque: 83 ft-lbs
