Description

Fits

Year	Make	Model
2005-2007	Ford	F-250/F-350/F-450/F-550 w/ 6.0L Powerstroke
2008-2010	Ford	F-250/F-350/F-450/F-550 w/ 6.4L Powerstroke
2011-2026	Ford	F-250/F-350/F-450/F-550/F-600 w/ 6.7L Powerstroke

Note: These springs are ONLY compatible with 4x4 front axle models.

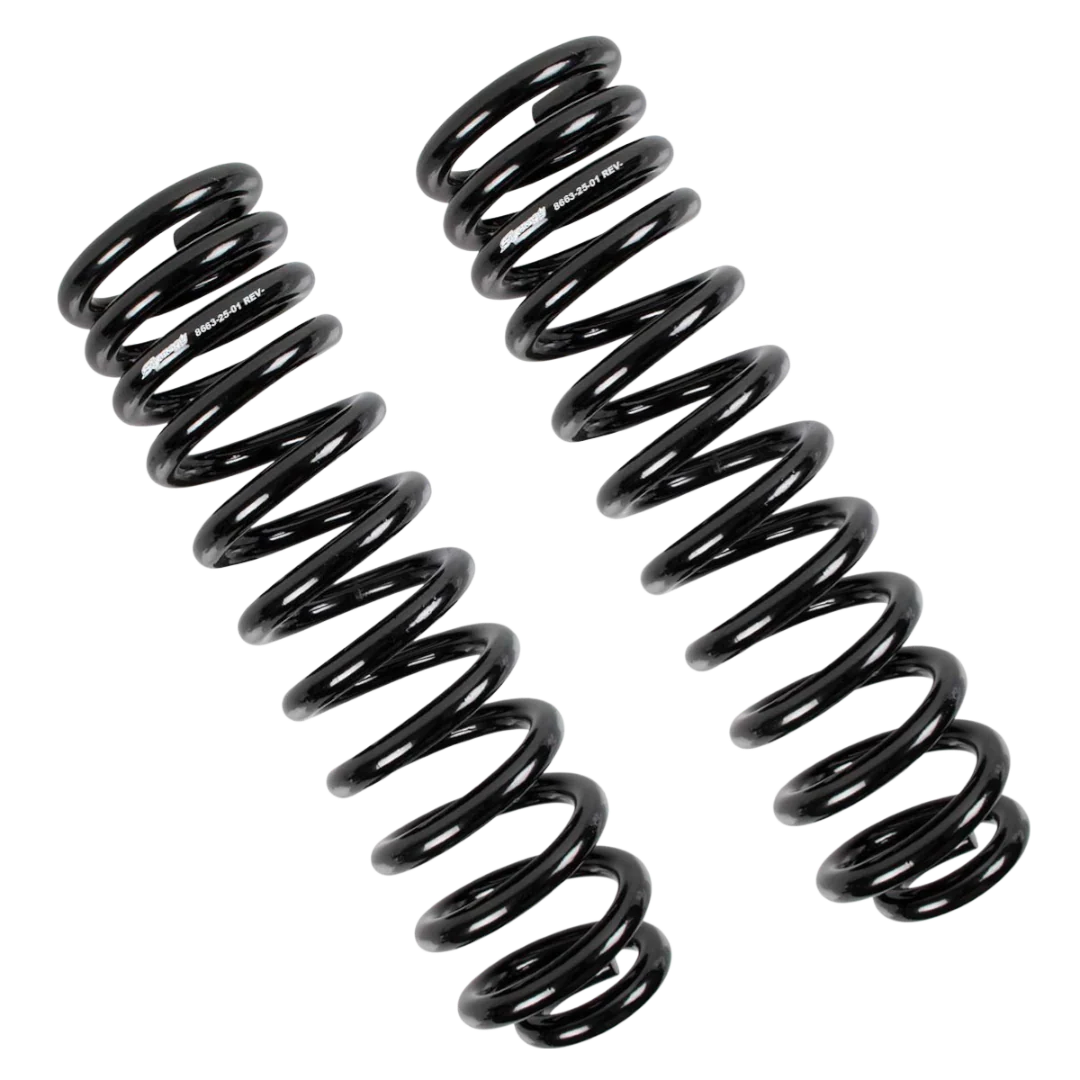

Give your Super Duty the aggressive stance it deserves without sacrificing the smooth ride quality you expect from a high-end hauler. These Synergy leveling springs provide a 2.5-inch lift for your 4x4 Powerstroke, utilizing a progressive-rate design that soaks up pavement chatter while offering heavy-duty bottoming resistance when the pavement ends. Manufactured from 5160H spring steel right here in the USA, these coils are pre-set to ensure your front end never sags, keeping your truck level and trail-ready for years to come.

Part Number: 8663-25

Features

• Compatible with the 2.5-inch Leveling Kit

• Progressive Dual-Rate Design

• Abrasion-Resistant Powder Coat
• Pre-Set. This means no spring sag for the life of the spring
• Increased bottoming resistance
• Increased travel
• Fits in the stock location
• No modifications required to install

Specifications

• Solid Height: 10 ¼“
• Free Length: 22”
• Hot-formed: Made from 5160H spring steel

Includes

• (2) Front Leveling Coil Springs

Notes

• Not compatible with trucks equipped with a Front Suspension Height Sensor unless the sensor is removed or the linkage arm is lengthened.
• Specifically sprung for the weight of diesel engine applications.
