Description

Fits

Year	Make	Model	Engine
2005+	Ford	F-450/F-550	6.0L, 6.4L, 6.7L Powerstroke

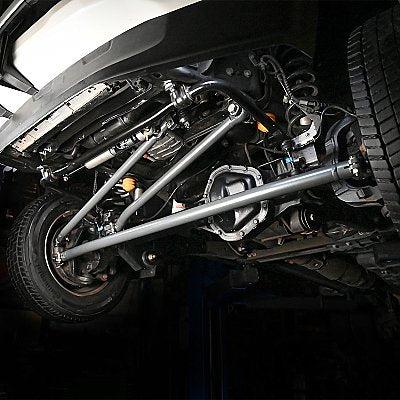

Compatible with stock wheels & tires, with a slight bend to clear even aftermarket differential covers, this Synergy tie rod is a direct replacement for OEM components that will give you an immediate increase in steering feel & strength.

Part Number: 7602-01

Features

• Max extended length: 66.0"
• Min collapsed length: 68.0"
• CNC formed From 2.0 Inch x 0.25 Wall DOM tubing
• Abrasion-resistant powder coat finish
• Adjustable without removing from truck
• Pinch bolts instead of jam nuts to simplify installation & adjustment
• HD Metal on Metal Tie Rod Ends with oversized 1 1/4" shank
• No factory components need to be reused
• 40% stronger than the stock tie rod

Includes:

• (1) 7602-01 HD tie rod
• (1) 4150-L Single plane tie rod end
• (1) 4151-L Through shaft tie rod end
• (1) 3622-12-12-PL Adjuster sleeve

Additional Info

• Compatible with stock wheels and tires
• Offers a more direct connection to the road compared to stock
• Improves strength and steering feel and eliminates any chance of bending
• Eliminates unwanted tie rod flop & the steering dead-spot commonly encountered with hydro assist setups

Notes

• Replacement Tie Rod Ends:
  • (1) 4151-L
  • (1) 4150-L
• Backwards compatible with factory drag link
• Synergy drag link (7600-01) recommended but not required
• For use in the under knuckle configuration for Super Duty trucks
• Synergy Premium Copper Infused Anti-Seize 4118 to be used with all threaded components (TRE's and Adjuster Sleeve)
