Description

Fits

Year	Make	Model
2007-2017	Jeep	JK/JKU

Part Number: 8033

Features

• Abrasion-resistant powder coat finish
• High-Quality crush-resistant 2" X.25" Wall USA-made 1026 DOM tubing
• Synergy Dual Durometer Bushings (DDB) with Teflon bearing surface for a maintenance-free design
• Synergy Double Adjuster Sleeve & Pinch Bolt Assembly
• 100% bolt-on components with the use of basic hand tools

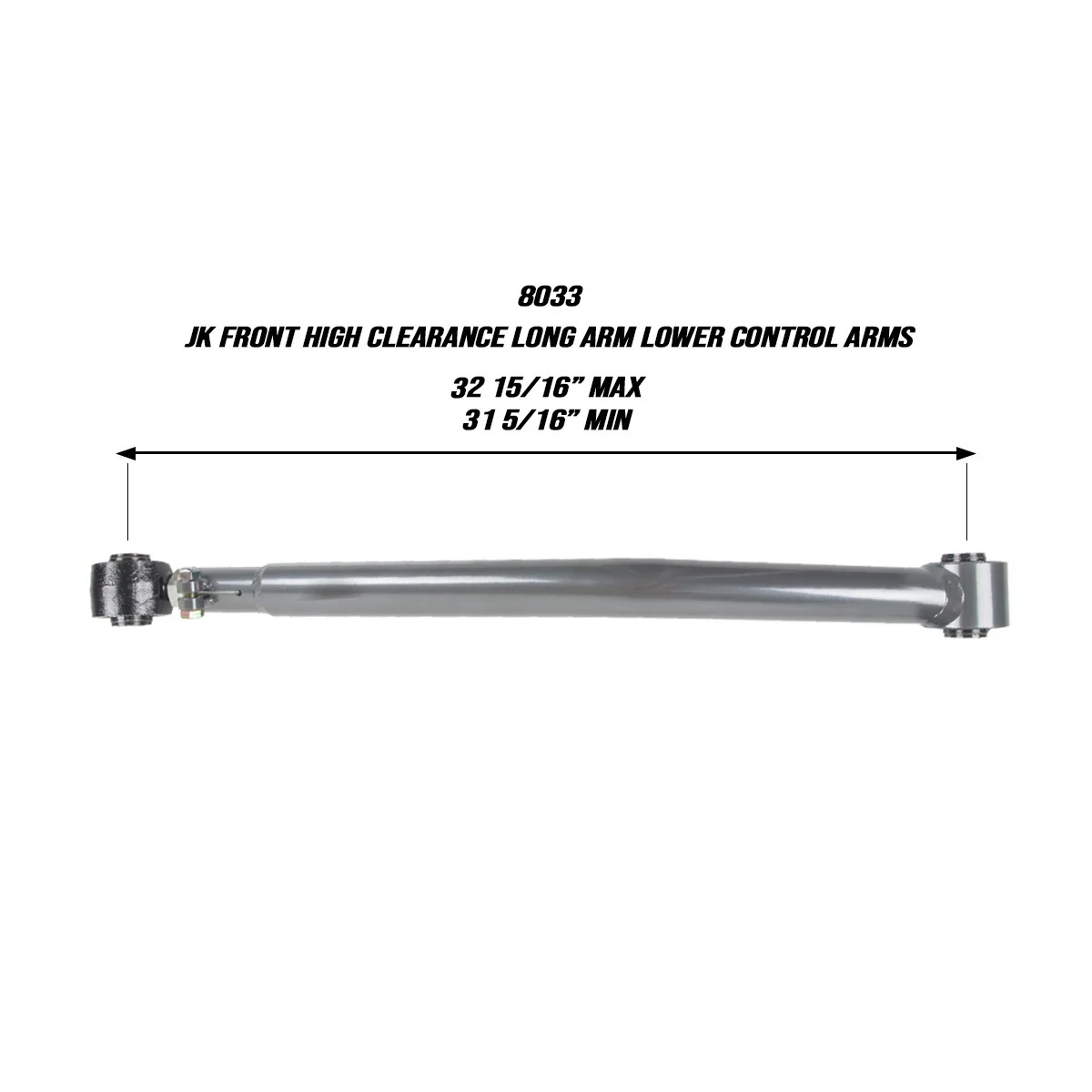

Min/Max Lengths:
Measured in a straight line from center of bolt hole to center of bolt hole

• MAX EXTENDED: 32-15/16"
• MIN COLLAPSED: 31-5/16"

Includes:

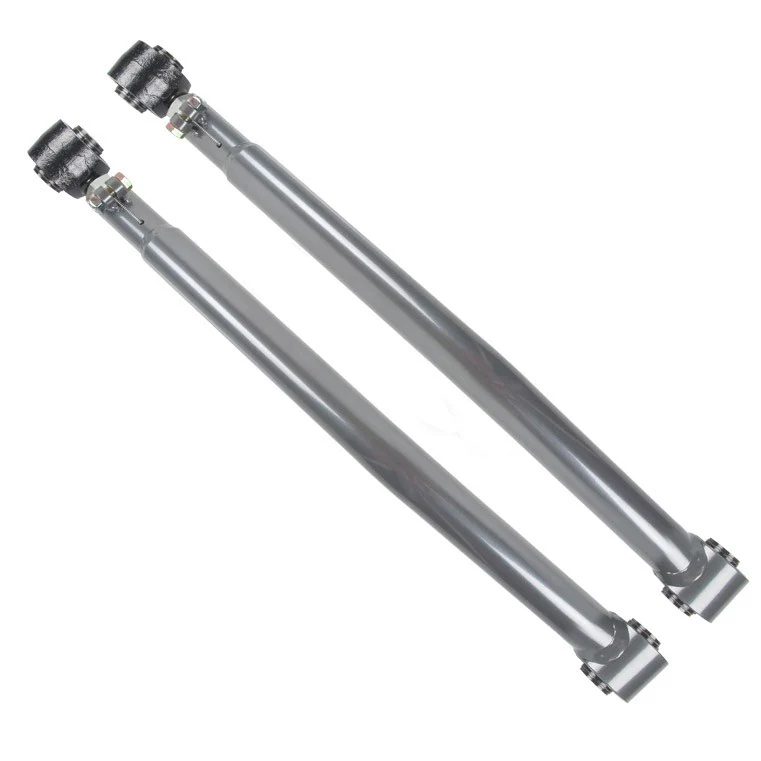

• (2)  Front Long Arm Lower Control Arms
• (2) Dual Durometer Bushing (DDB) Flex Joints
• (2) Dual Durometer Bushing Assemblies
• (2) Pinch Bolts and Grade 8 Hardware
• (2) Synergy Double Adjuster Sleeves

Installation

• Click Here

Notes

• When upgrading to adjustable control arms from cam bolts, it is recommended to replace the cam bolts with 8014 Cam Bolt Eliminator Kit.
• This kit is designed for use with Synergy Long Arm Bracket Kit
• While these arms are a direct bolt-in application, there is minor trimming on the axle involved for full clearance.
• It is recommended that all cutting/welding/fabricating be done by experienced fabricators
