Description

Fits

Year	Make	Model	Type	Lift	Location
2014-2018	Dodge / Ram	2500 Truck	w/ Rear Coil Springs	3"	Front & Rear

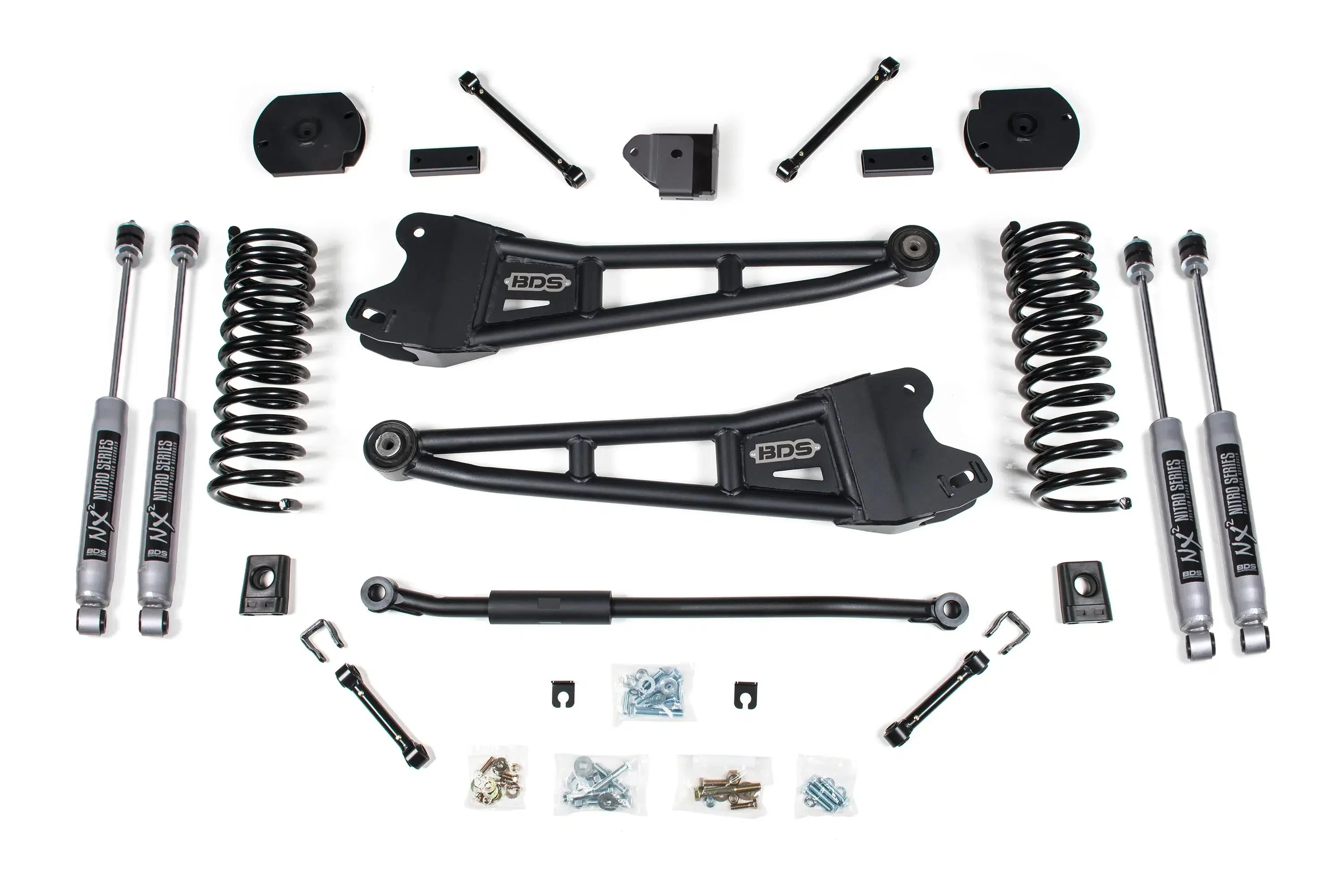

If you want to upgrade the performance, strength, ride, handling, and control of your Cummins without increasing the ride height too much, this full radius arm lift kit with a modest 3" of increased ride height with an impressive list of upgraded parts!

Part Number: BDS1624H

Features

• Factory-style rubber bushing mounts to keep the NVH levels in check
• 3-1/4" diameter bushings for maintenance-free service life
• Copper-anodized aluminum BDS nameplate
• NX2 Series Shocks
• 1.25" fabricated steel coil spring spacers
• Dual-rate front coil springs
• Bump stop extensions
• Raised track bar bracket
• Front brake line relocation brackets
• HD turnbuckle style adjustable track bar
• Front greaseable extended sway bar links
• HD 3" Radius Arms
• Clears 35's

Tire & Wheel Combinations:

• 35" x 12.50 w/ 17" x 9" and 5"
• 35" x 12.50" w/ 18" x 9" and 5"
• 35" x 12.50" w/ 20" x 9" and 5"

Notes

• Not compatible with factory rear air ride vehicles


Installation

• Click Here For Installation Instructions
• Difficulty: 3 (where 1 = easiest and 5 = complicated)
