Fitment

Year	Make	Model
2019-2024	Ram	3500 / 4500 / 5500 w/ 6.7L Cummins

Description

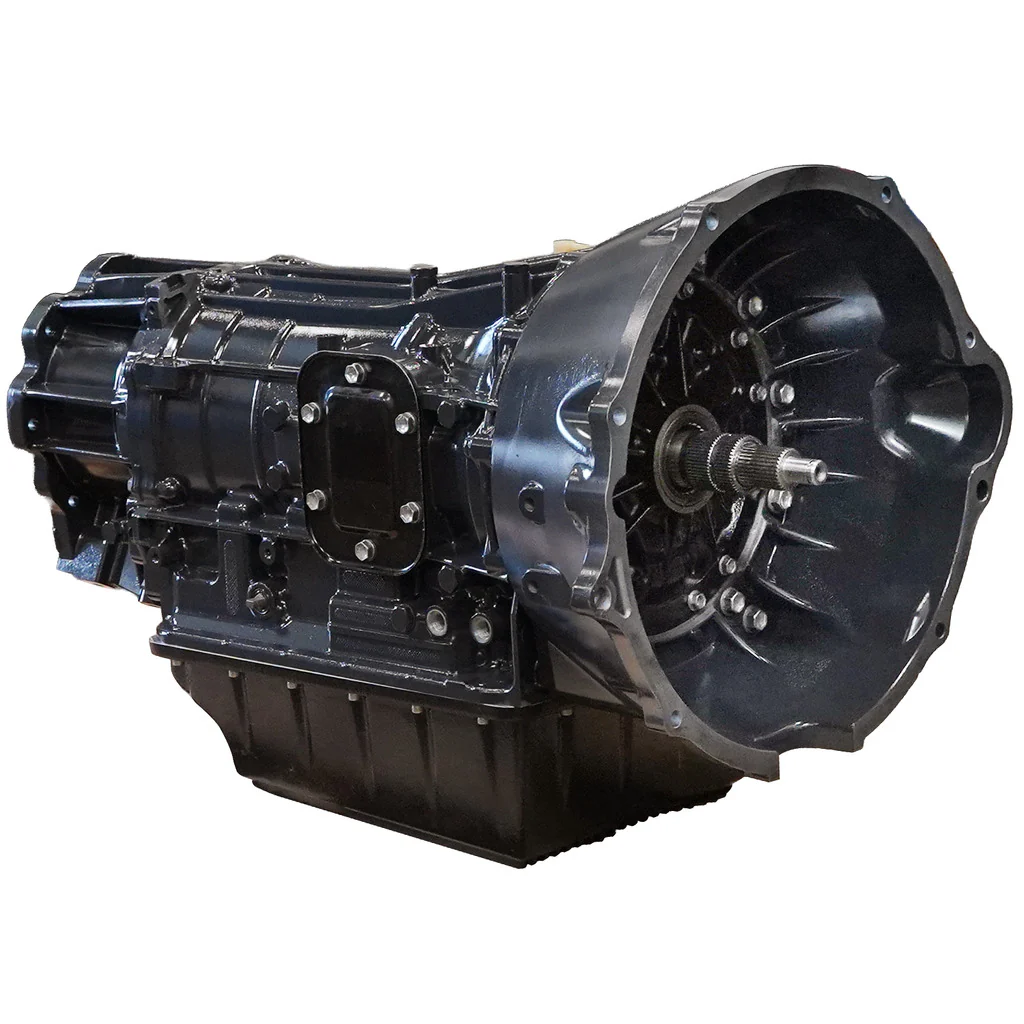

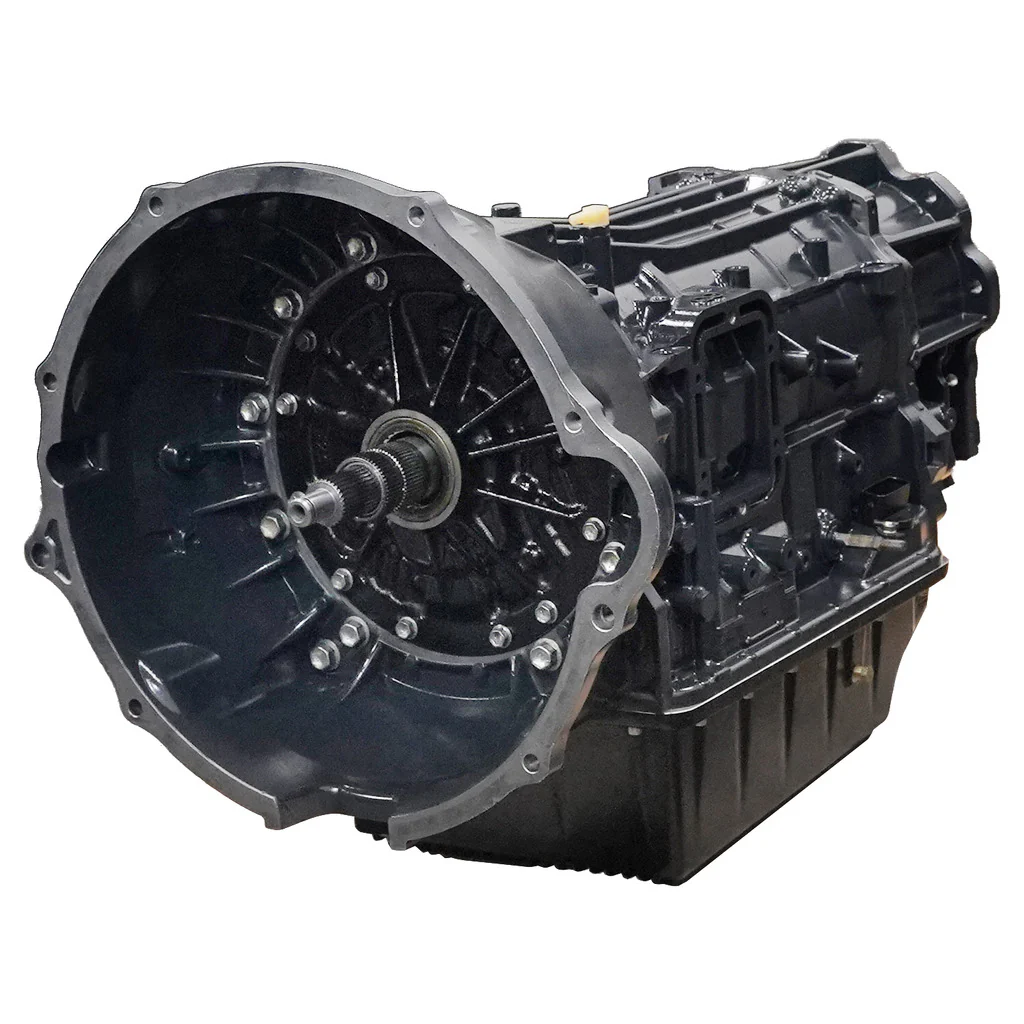

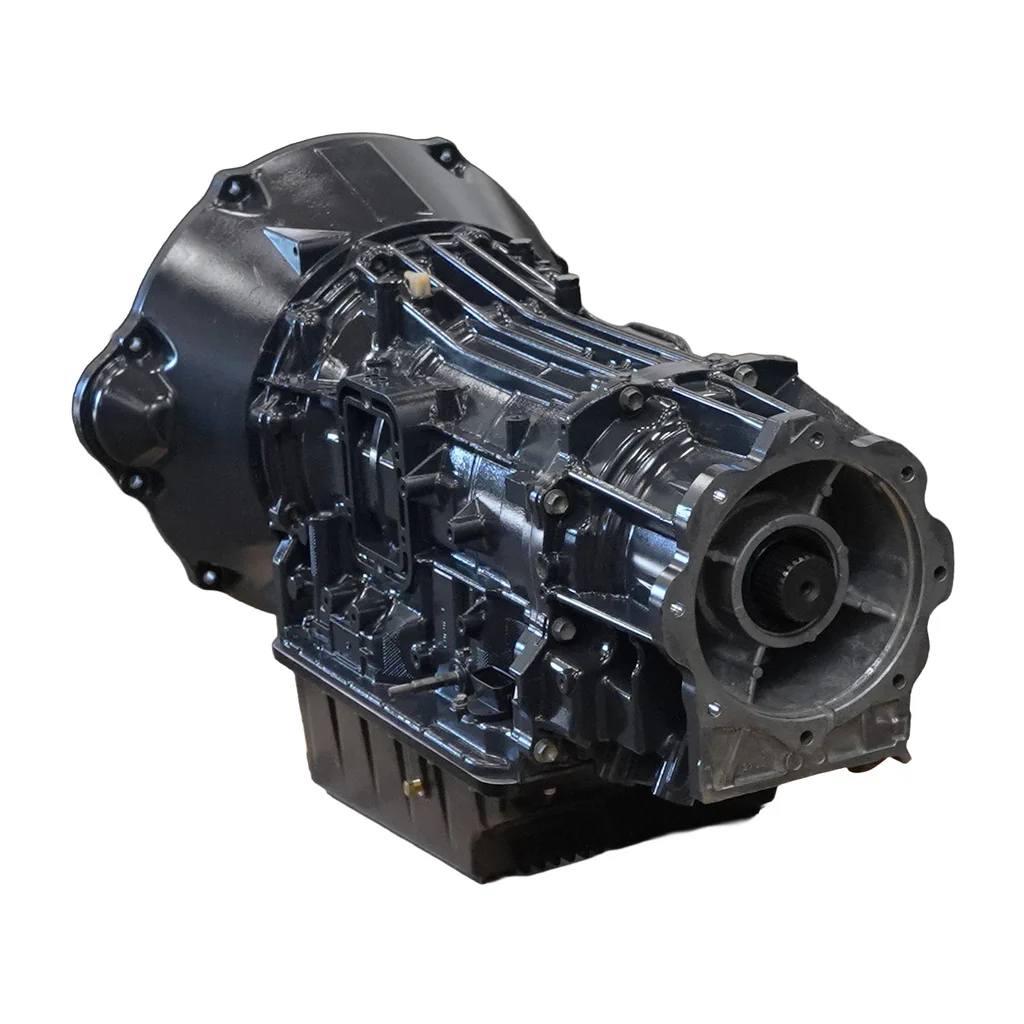

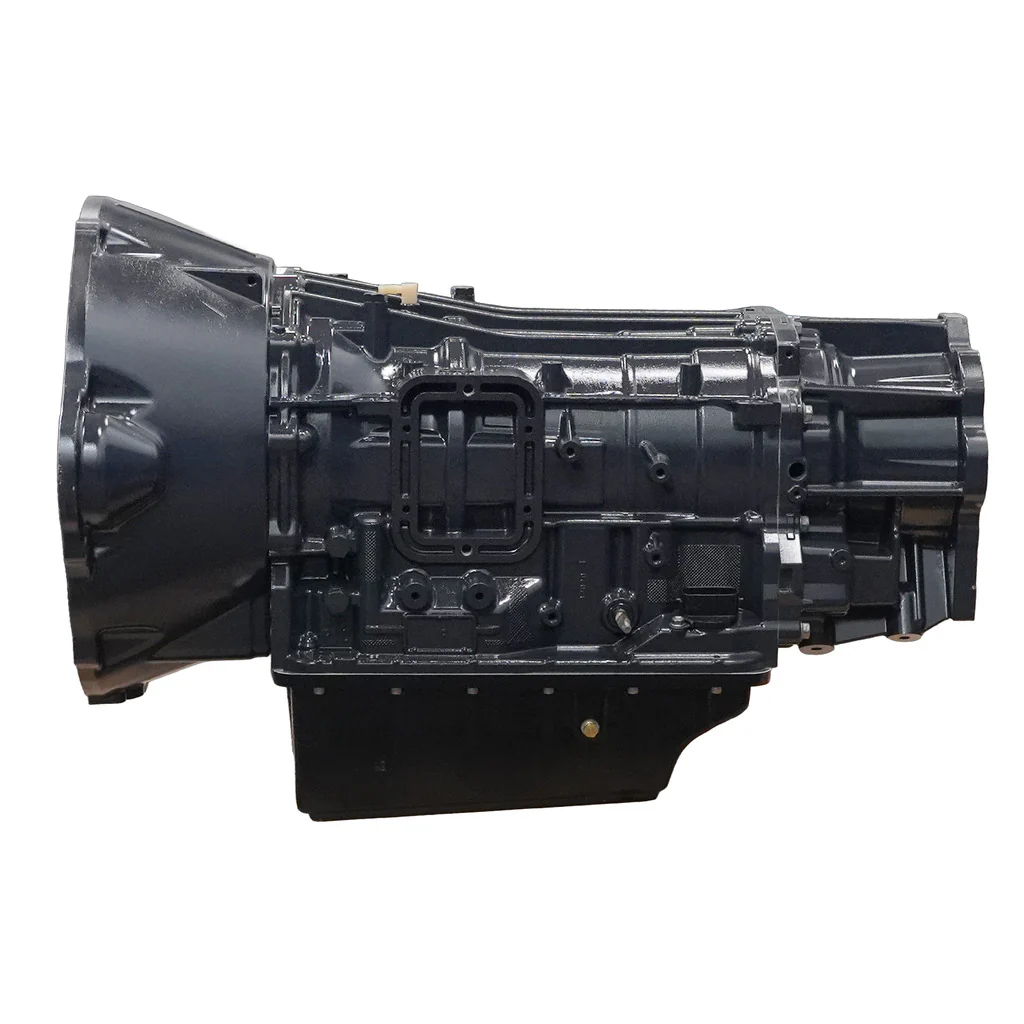

The 2019-2024 AS69RC is only found in the Ram 3500-5500 with the 6.7L diesel; many of these trucks are modified and therefore require a performance transmission to help deliver this power to the road. The Towmaster steps up from the Roadmaster with a nitride billet K2 hub, billet K3 drum, and increased friction counts across multiple clutch packs. Factory cork gaskets are replaced with improved nitrile gaskets, and the package includes a BD ProForce torque converter.

Configuration: 2WD Right Hand PTO

Part Number: 1065012PTOSS

IMPORTANT: This variant is for trucks with a factory right-hand PTO provision. If your truck has a left-hand PTO, order the 2WD Left Hand PTO (special order) (1065042SS) instead. If your truck has no PTO provision, order the 2WD (no PTO provision) (1065012SS).

Other configurations in this tier:

• 2WD (no PTO provision) (1065012SS)
• 4WD (no PTO provision) (1065014SS)
• 4WD Right Hand PTO (1065014PTOSS)
• 2WD Left Hand PTO (special order) (1065042SS)

Features

Transmission:

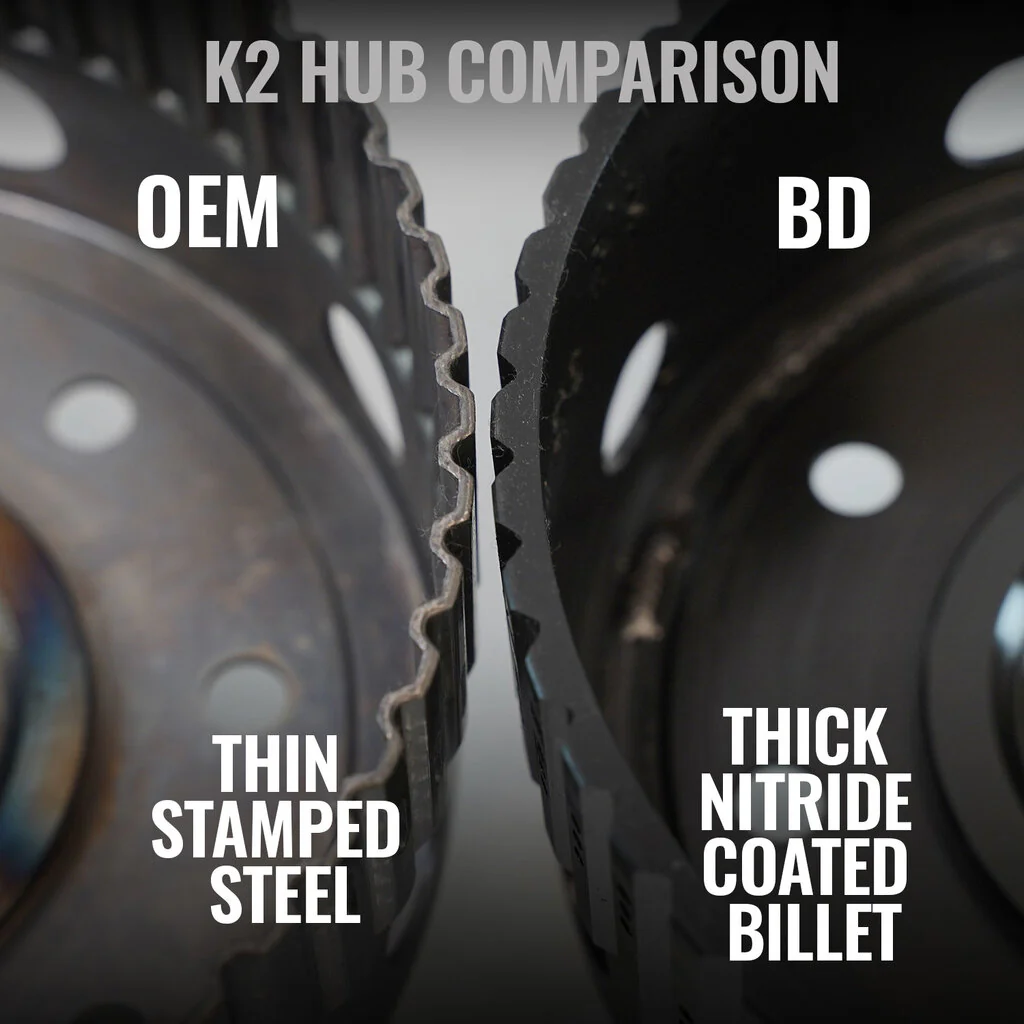

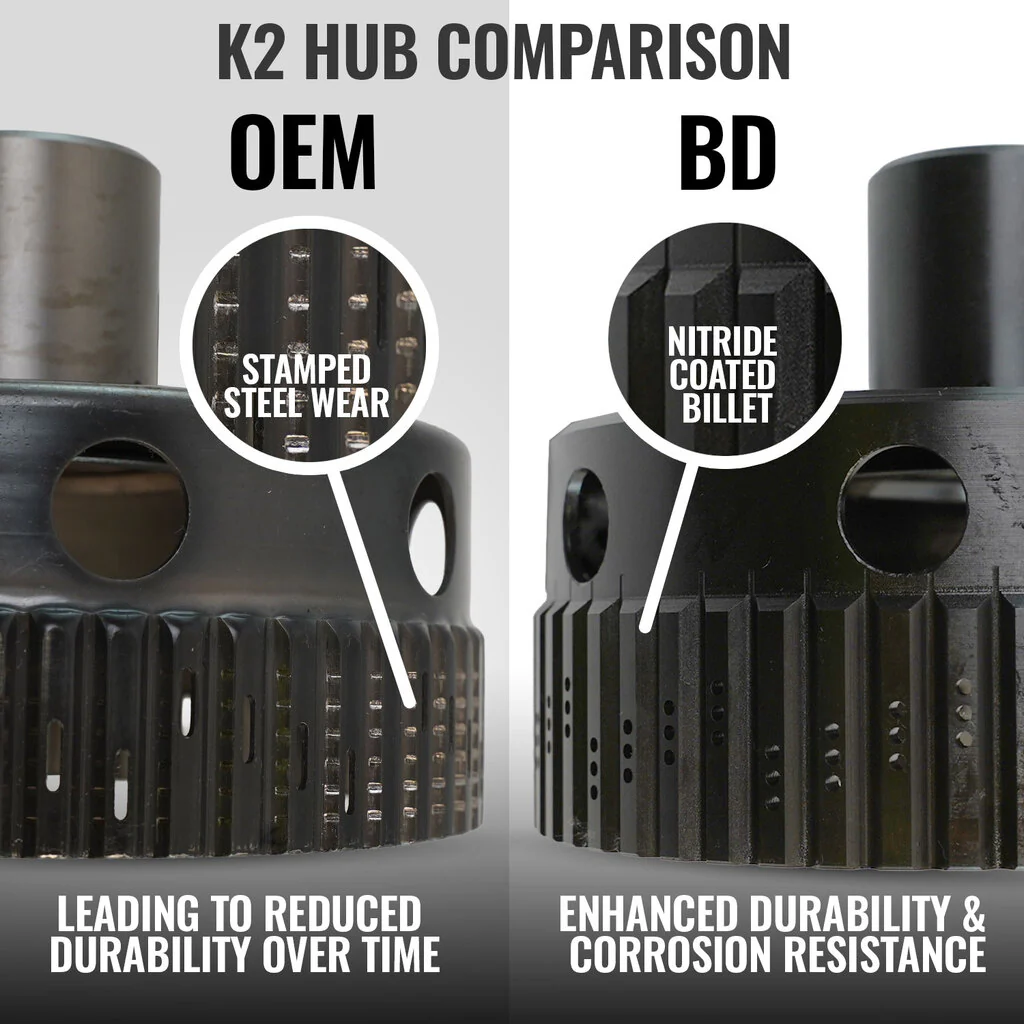

• BD exclusive billet nitride-coated K2 hub resolves the notorious clutch tooth wear issue on AS69RC transmissions

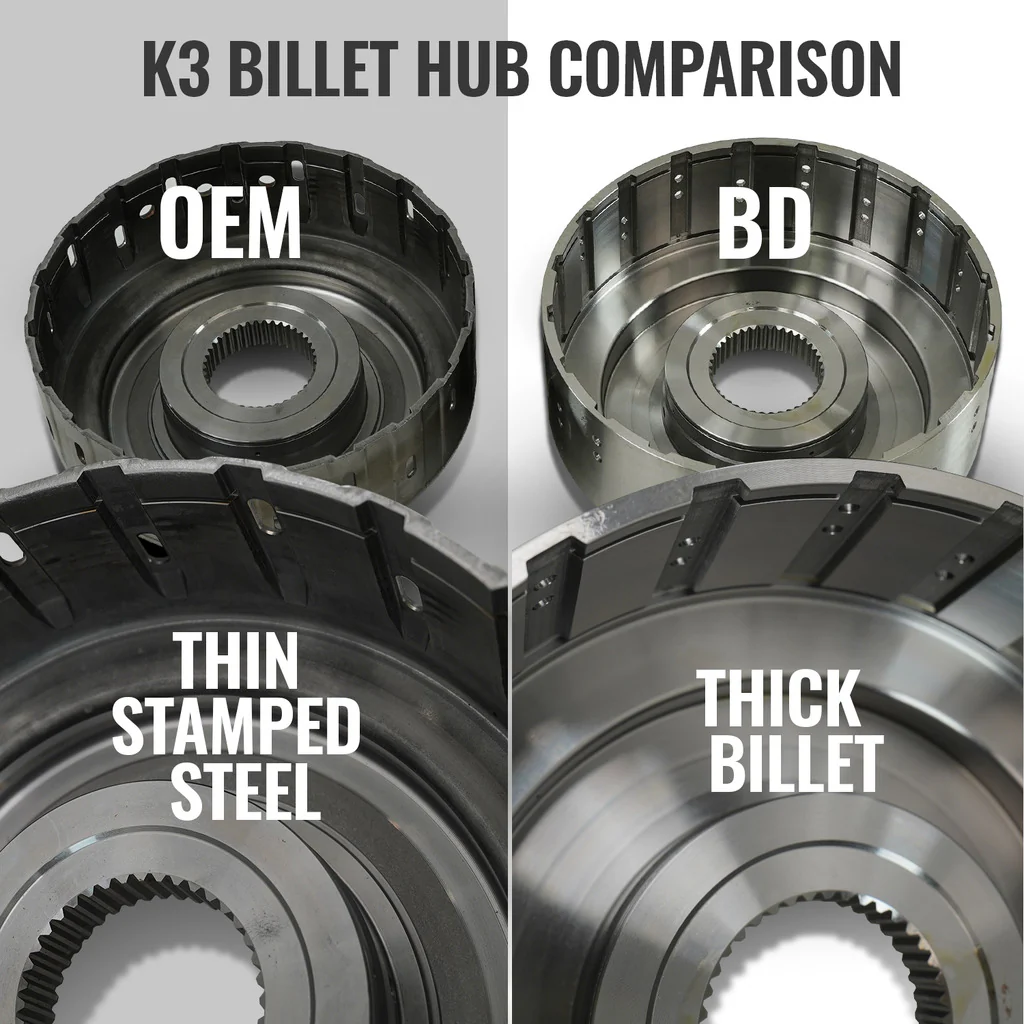

• Billet K3 drum increases clutch capacity, rigidity, and resists ring groove failure

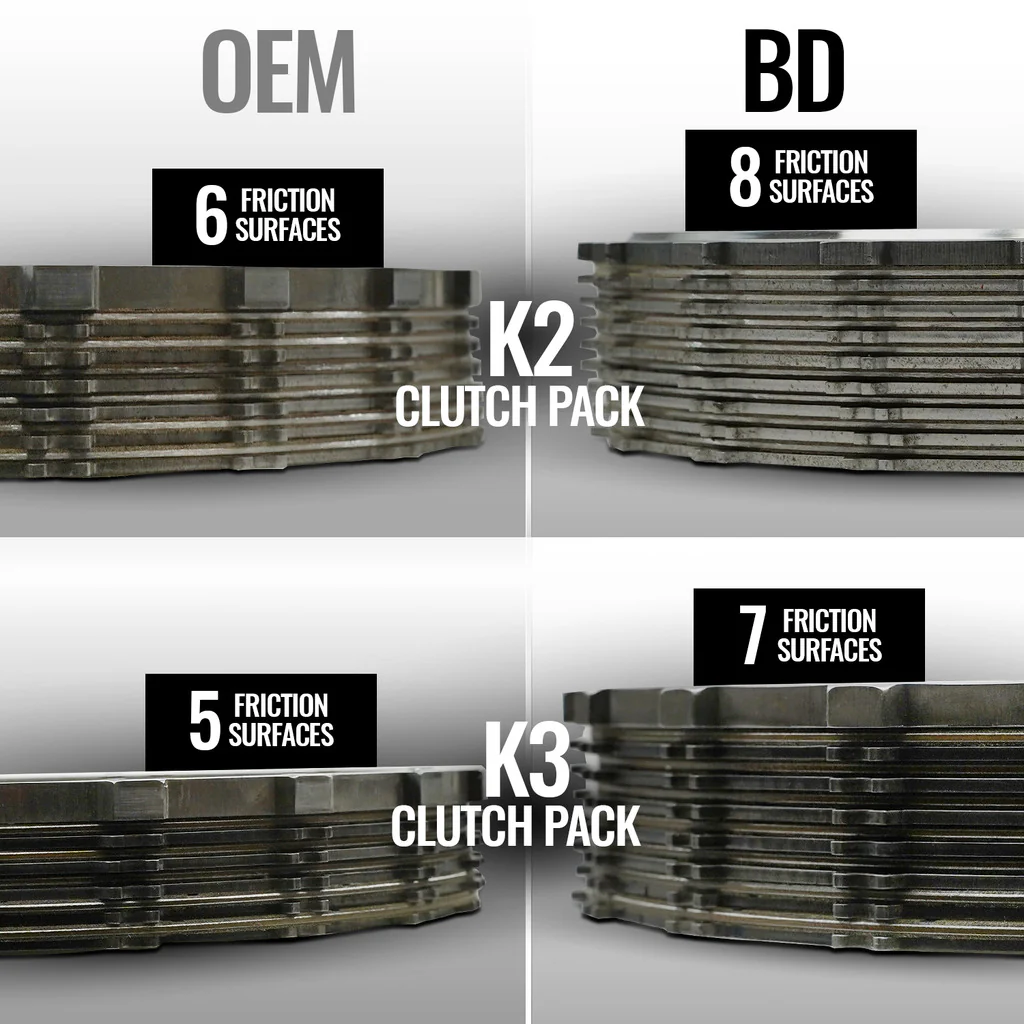

• More clutches compared to stock and competitors for increased torque capacity and durability
• Clutch Count K1: 7
• Clutch Count K2: 8 (33% increase over stock)
• Clutch Count K3: 7 (40% increase over stock)
• Clutch Count B1: 6 (20% increase over stock)
• Clutch Count B2: 9
• Increased valve body line pressure for increased clutch holding capacity

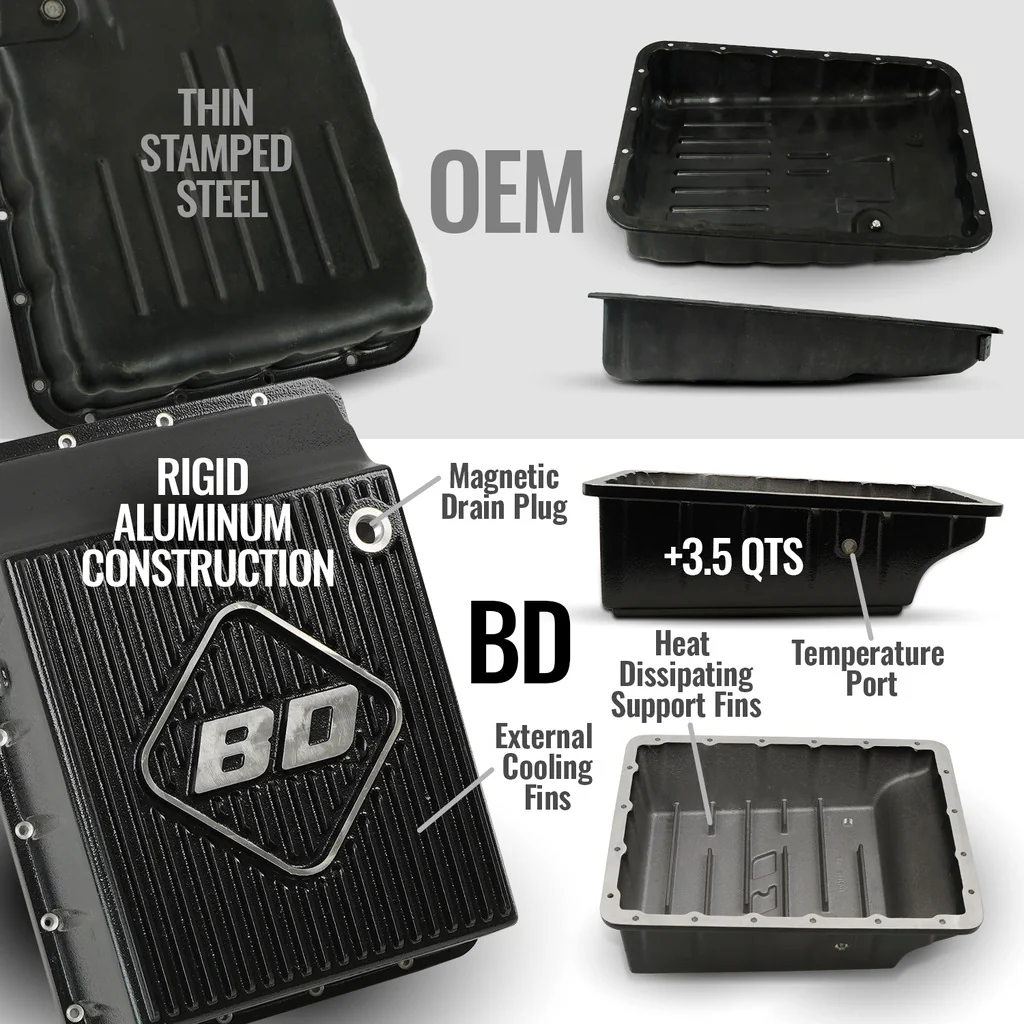

• BD deep sump pan increases fluid capacity by 3.5 qts for better fluid life and cooling

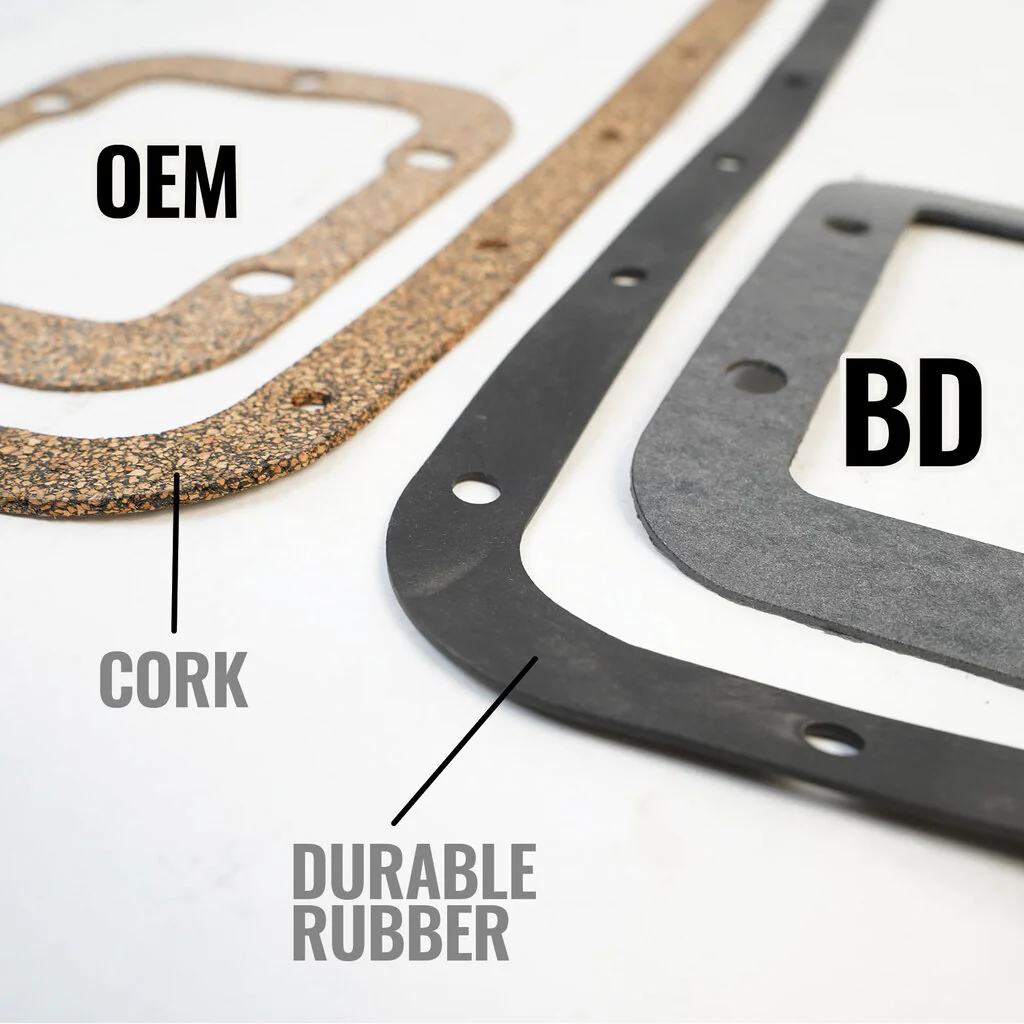

• Nitrile pan and PTO gaskets prevent leaks common with OEM cork gaskets

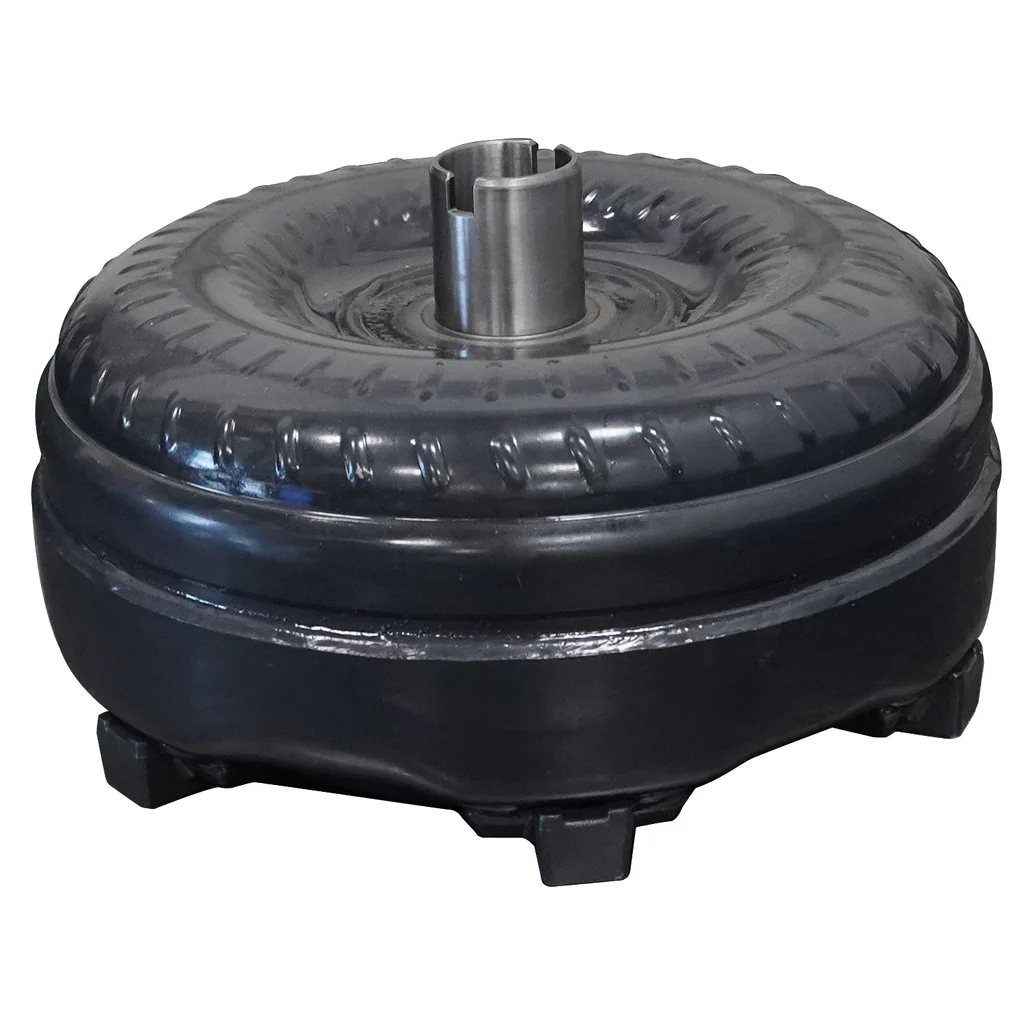

BD ProForce Torque Converter:

• New Clutches for reliable, strong converter clutch apply (3 frictions and 3 steels)
• New sprag for reliable stator operation
• Cost-effective OEM replacement to accompany a transmission replacement

Specifications

• Install Time: 8 Hours 30 Minutes
• Warranty: 36 Months Parts / 12 Months Labor
• Core Deposit: $3,500 CAD refundable (returned core required)

Replaces OEM Part Numbers

• 2WD: 68533455AB, 68452394AE, 68452392AE, 68533457AB, 68533467AA, 68452714AE

Notes

• Requires return of a rebuildable core ($3,500 CAD core deposit applies). Core must be returned within 30 days.
• Freight charges apply; this item ships LTL.
