Description

Year	Make	Model	Engine
2020-2026	Chevrolet	Silverado 2500HD/3500HD	6.6L Duramax L5P
2020-2026	GMC	Sierra 2500HD/3500HD	6.6L Duramax L5P

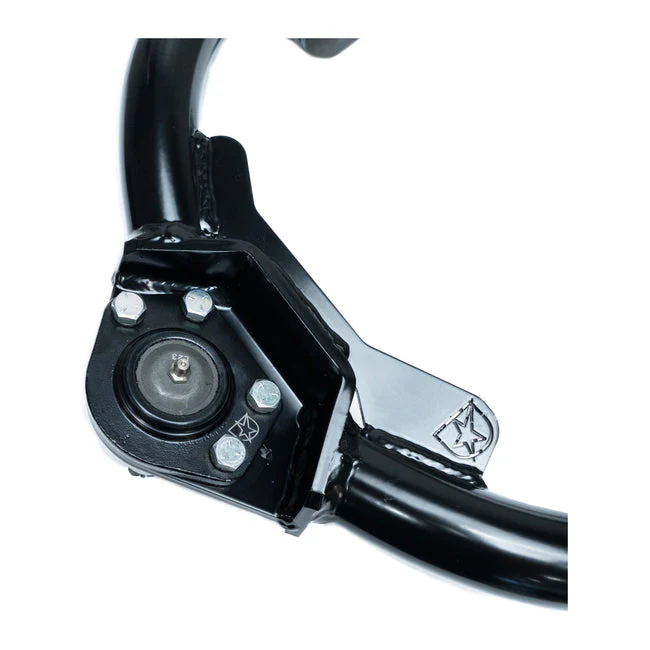

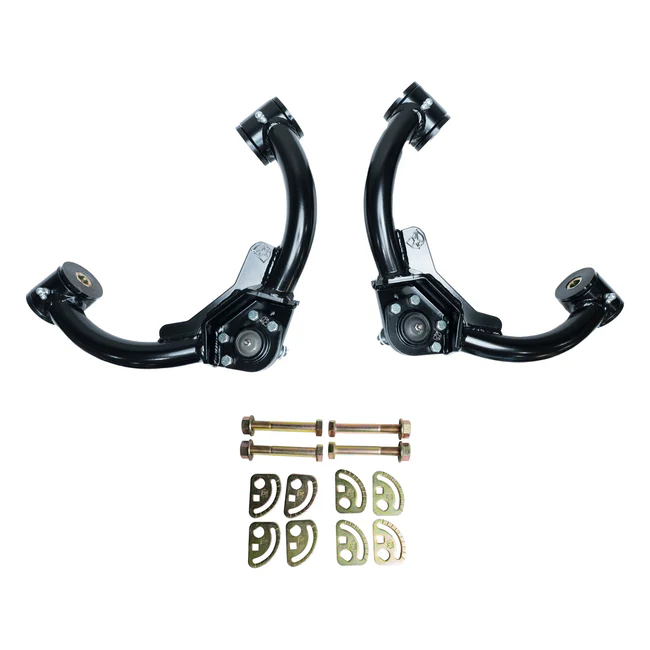

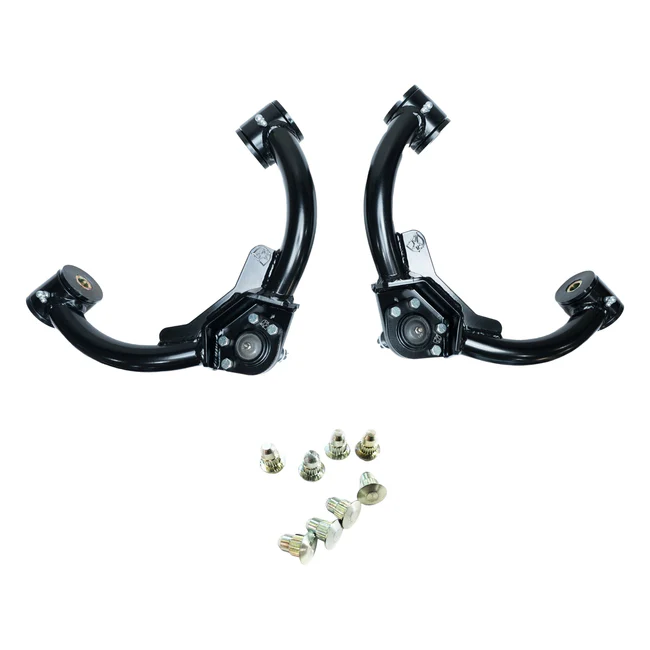

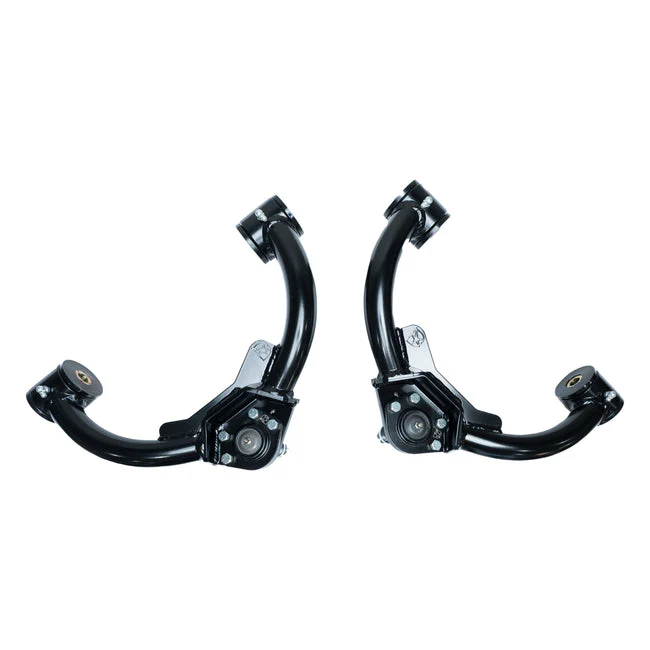

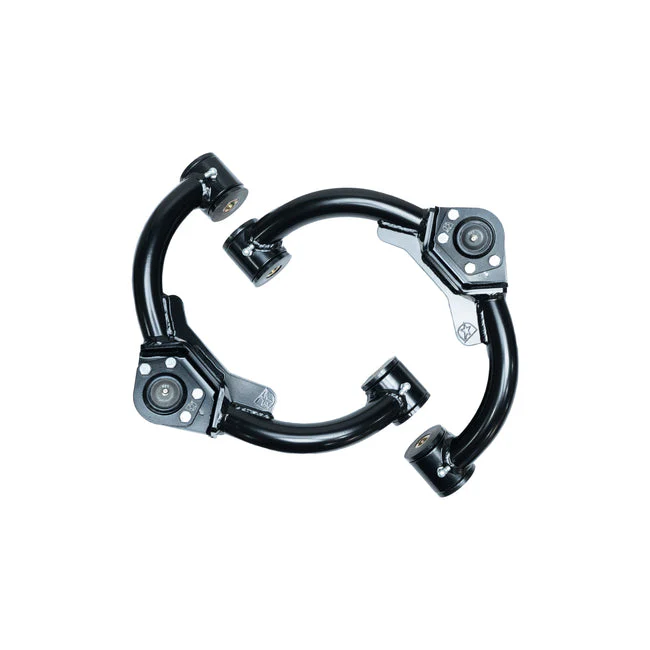

Upgrade to sturdy tubular upper control arms with gusseted design and improved ball joint articulation. Features black powder coating, serviceable polyurethane bushings, and bolt-in ball joints rated for stock, leveled, and lifted applications on 2500HD/3500HD trucks.

Part Number: XD-UCA-2025-TUBE

Replaces Part#:

• GM 84735902

Features

• Sleek Tubular Style Arm with Black Powder Coating
• Xtreme Duty Tubular Design with Medial Gusset for Increased Strength
• Increased Ball Joint Range of Articulation
• Dmax XD Bolt in Ball Joint for easier replacement
• Serviceable Polyurethane Bushings
• Includes hardware for installation
• Sold in pairs

Installation Notes

Cam Bolt Kit will NOT work with control arm drop lift kits. Not compatible with ZR2/AT4X models. Kryptonite alignment pins and cam bolt kits are optional but recommended, especially for higher mileage trucks or harsh climates.
