Description

Fits

Year	Make	Model
2023 - 2024	Ford	F-250 Super Duty GAS
2023 - 2024	Ford	F-350 Super Duty GAS

Note: Will NOT fit diesel applications. Not compatible with ONBOARD SCALES/SMART HITCH.

Compatible with Tremor models, but you will only get a 1.0″ lift.

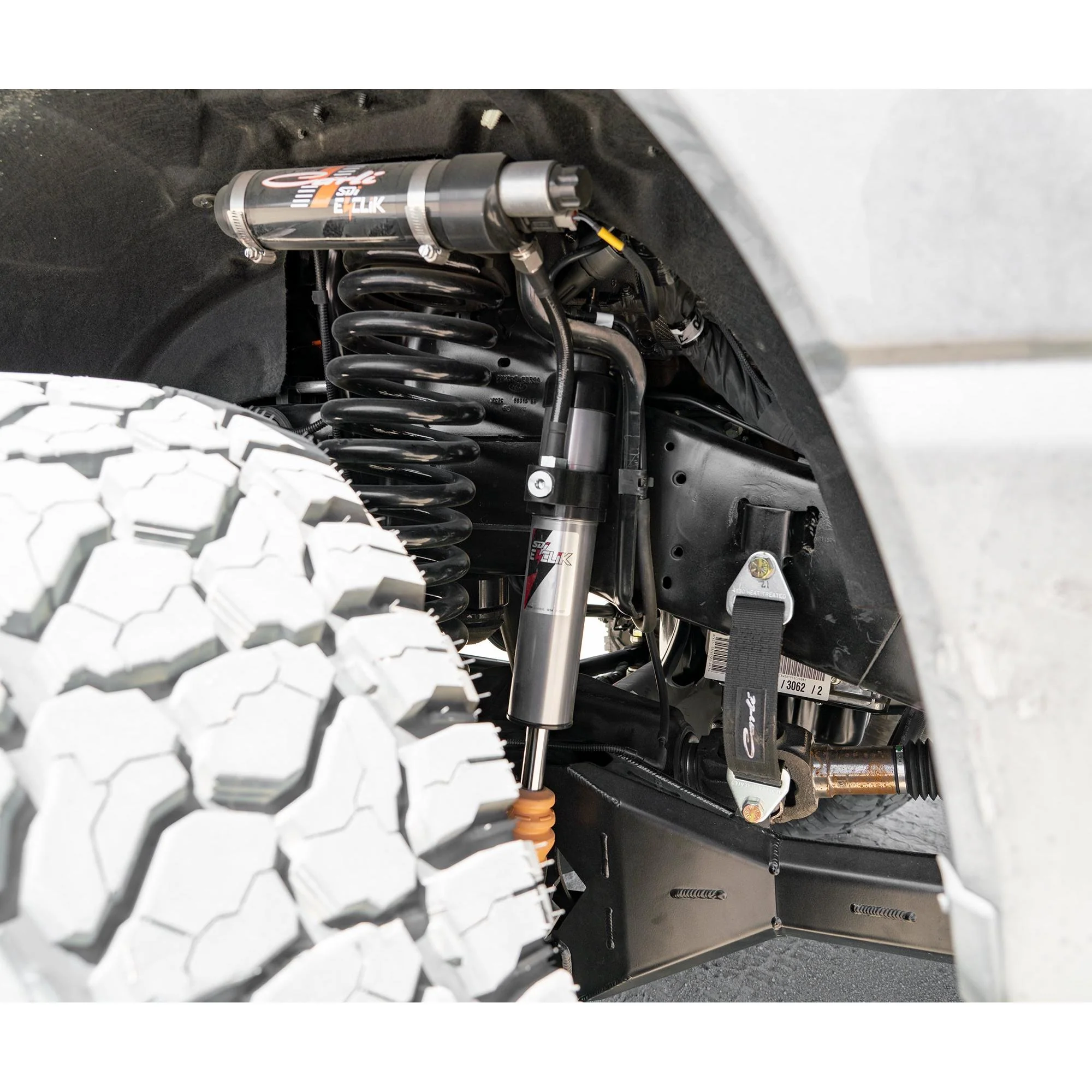

The E-Venture system features SDI electronically controlled shocks that read and react to the terrain 250 times per second. This "Active" suspension setup allows for instantaneous tuning across three modes: Mountain, Street, and Desert. Using data from an engine-mounted IMU and factory OBDII data (Brake Pressure, RPM, Steering Angle, Throttle), the ECU anticipates chassis movement to maintain a level ride.

Part Number: CS-FLVL-EV25-23-GAS

Features

• Instantaneous Tuning: Select between Mountain (Rock-Crawl), Street, and Desert Modes.
• ECU Control: Processes data 250x per second to adjust Pitch, Roll, Brake, Throttle, and Steering Response.
• Pro Mode: Allows manual adjustment of damping characteristics with a "Restore Default" setting.
• Rear Load Adjustment: Independent control over rear dampers for balancing comfort and support when loaded.
• Construction: 2.5" Hard-anodized aluminum bodies with 17-4 Stainless Steel shafts.
• Performance: 9.0" Front Travel / 12" Rear Travel.

Notes

• The E-Venture System is optimized for the Torsion Sway Bar and Full Progressive Leaf Springs.
• Long Bed Extension Harness is required for Super-Cab/Crew-Cab Long Bed trucks; NOT required for Single Cab Long Bed or Crew Cab Short Bed.
• ECU is designed for in-cab mounting (typically under the driver's seat).
