Description

Fits:

Year	Make	Model
2011-2019	Chevrolet	Silverado 2500 HD / 3500 HD
2011-2019	GMC	Sierra 2500 HD / 3500 HD

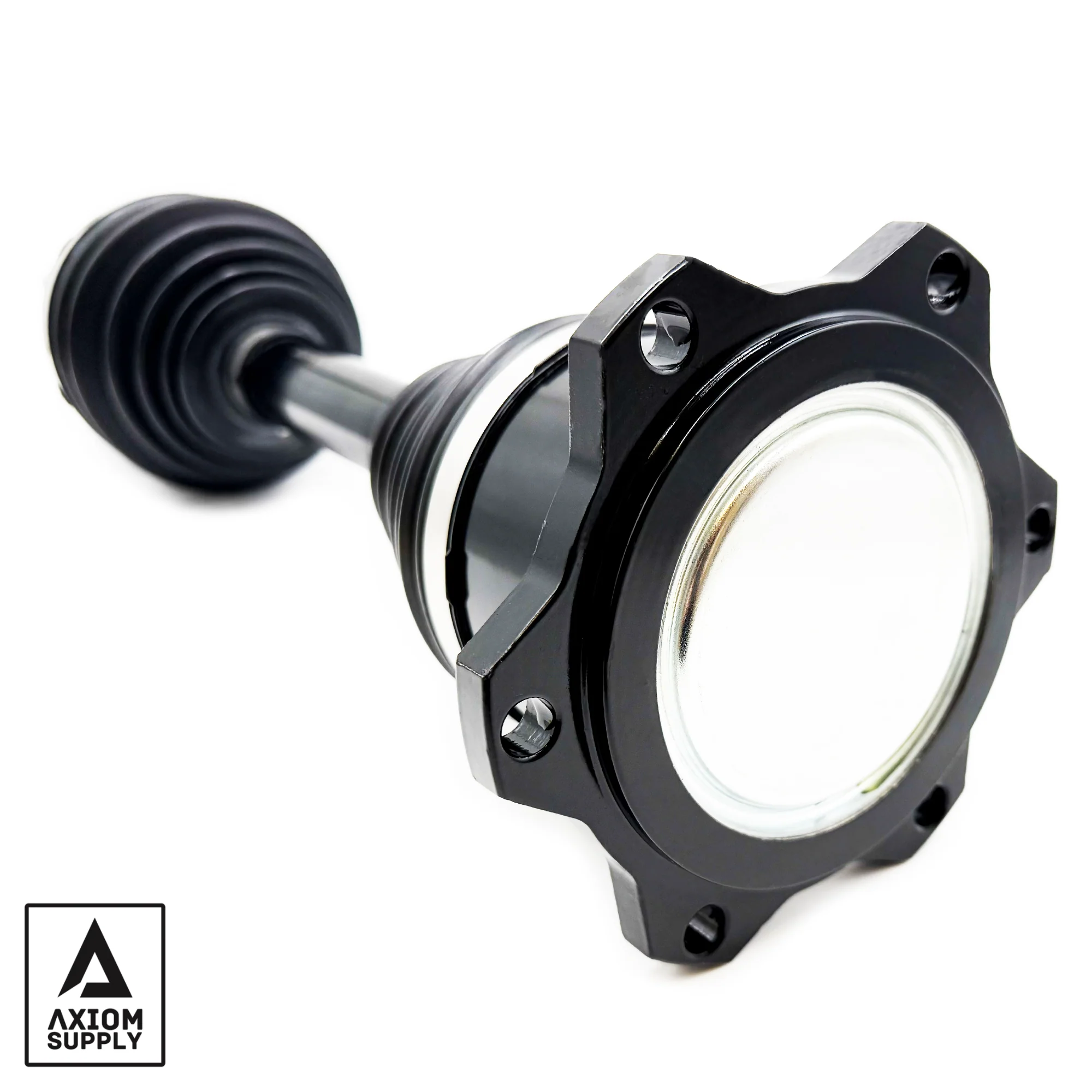

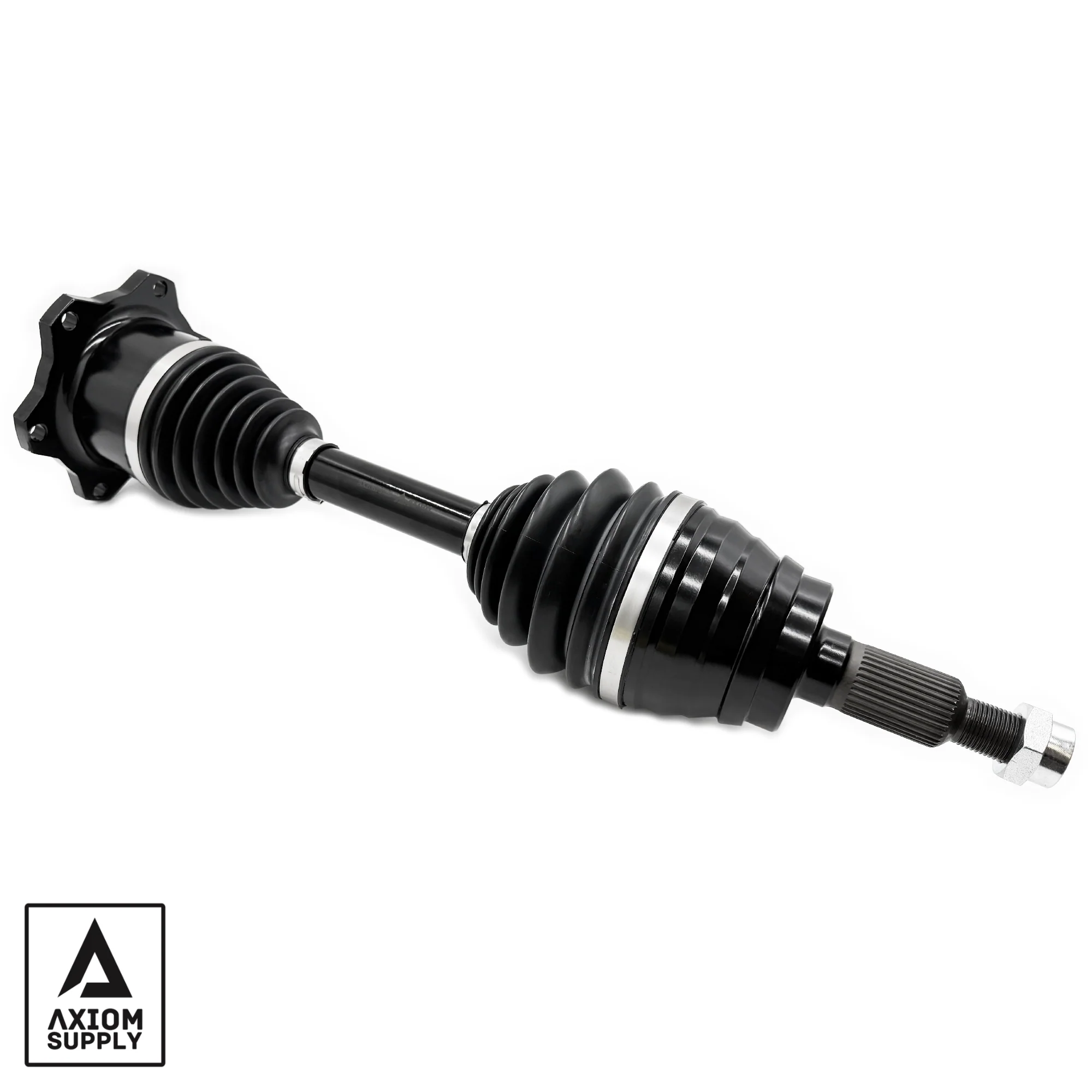

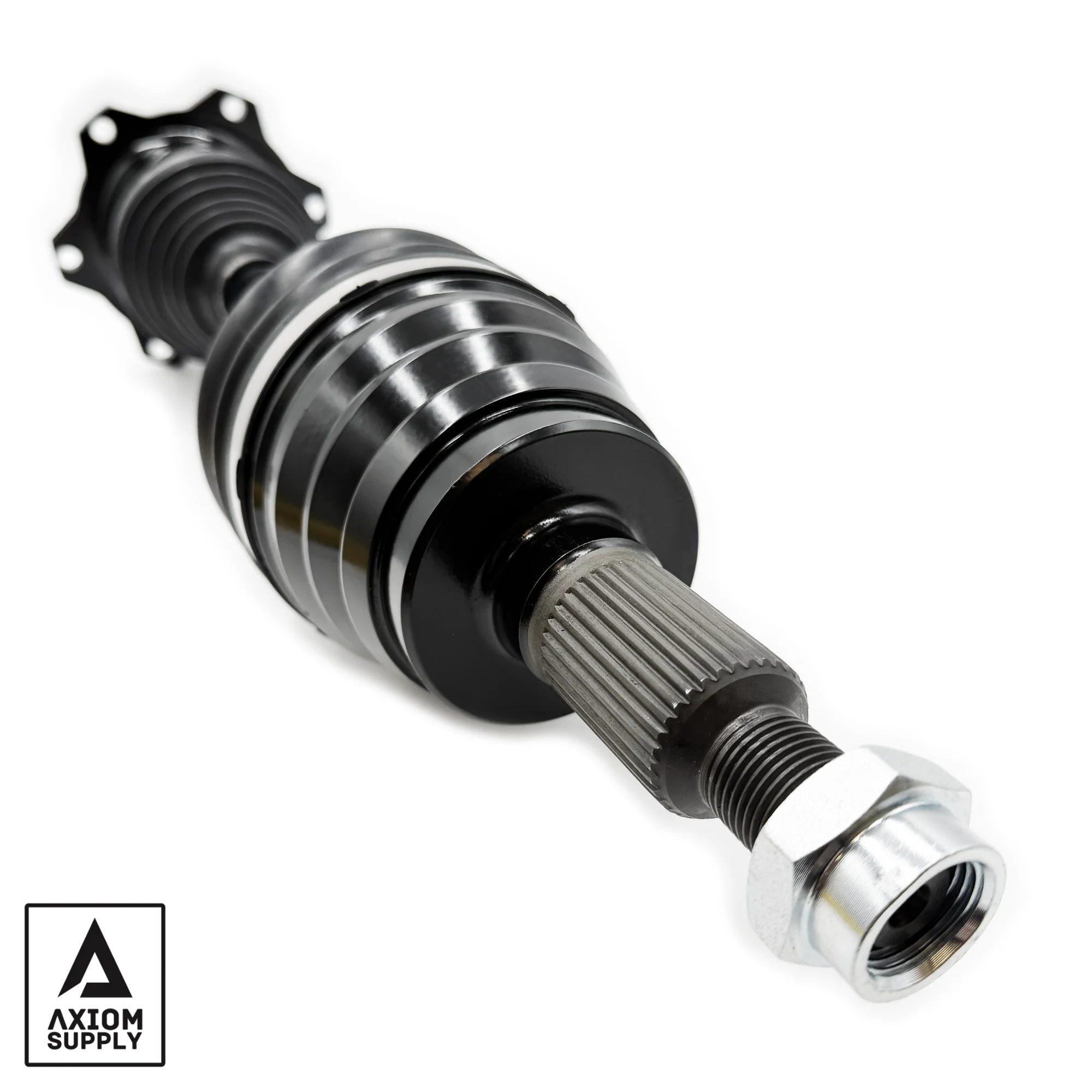

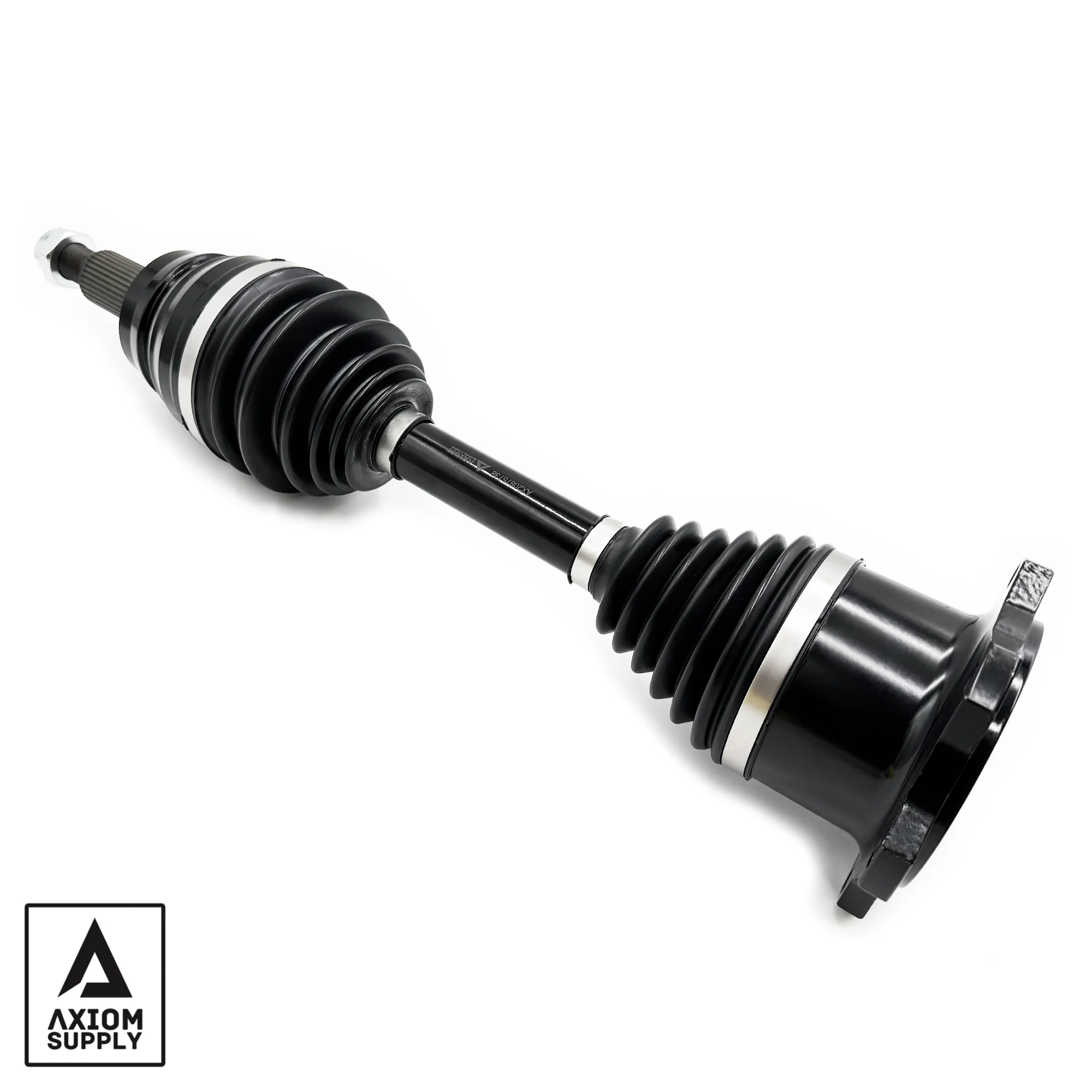

Factory CV axles weren’t built to live behind lifted suspension, oversized tires, or a truck that actually works for a living. The Axiom Reaper Series axle fixes that with oversized internals, an e-coated finish, and a heat- and oil-resistant TPE boot that won’t crack open the first cold snap. Bolt it in, beat on it, and quit replacing CV axles every winter.

Part Number: AXCV11

Features

• Reaper Series Construction – Top-shelf materials built to take real abuse.
• True Lifetime Warranty – Backed by Axiom Supply for the long haul.
• E-Coated Finish – Shrugs off salt, moisture, and road debris.
• TPE CV Boot – UV-stable, heat-resistant, and oil-resistant. Outlasts traditional rubber.
• Oversized High-Torque Internals – Bigger CV balls and cages than the competition for more torque capacity and articulation under lift.
• OEM-Style Direct Fit – No cutting, no modifications.

Specs

• Axle Nut: 177 lb·ft (240 N·m)
• CV Axle Flange Bolts (Inner CV to Differential): 58 lb·ft (79 N·m)
• Weight: 23 lb

Includes

• (1) Reaper Series CV Axle Assembly

Notes

• Always torque fasteners with the vehicle on the ground and follow OEM tightening procedures.

OE Part Replacement

GM 22813485 / 25856606, TrakMotive GM-8519, GSP NCV10226, Axiom AXCV11

Warranty

Our suspension and steering components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.
