Description

Fits

Year	Make	Model	Engine
All	PACCAR	MX-13	MX-13 (EPA 13 & EPA 24)

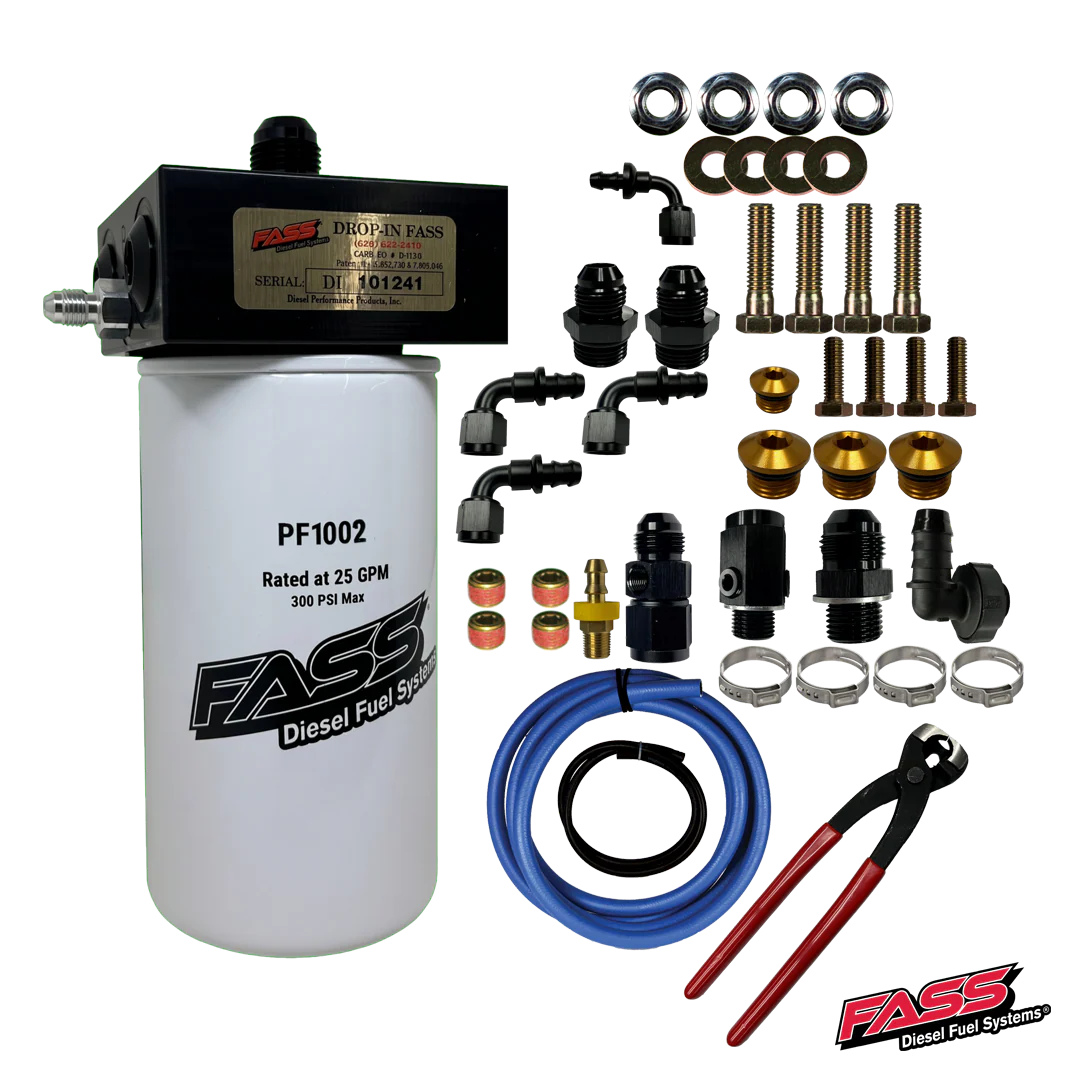

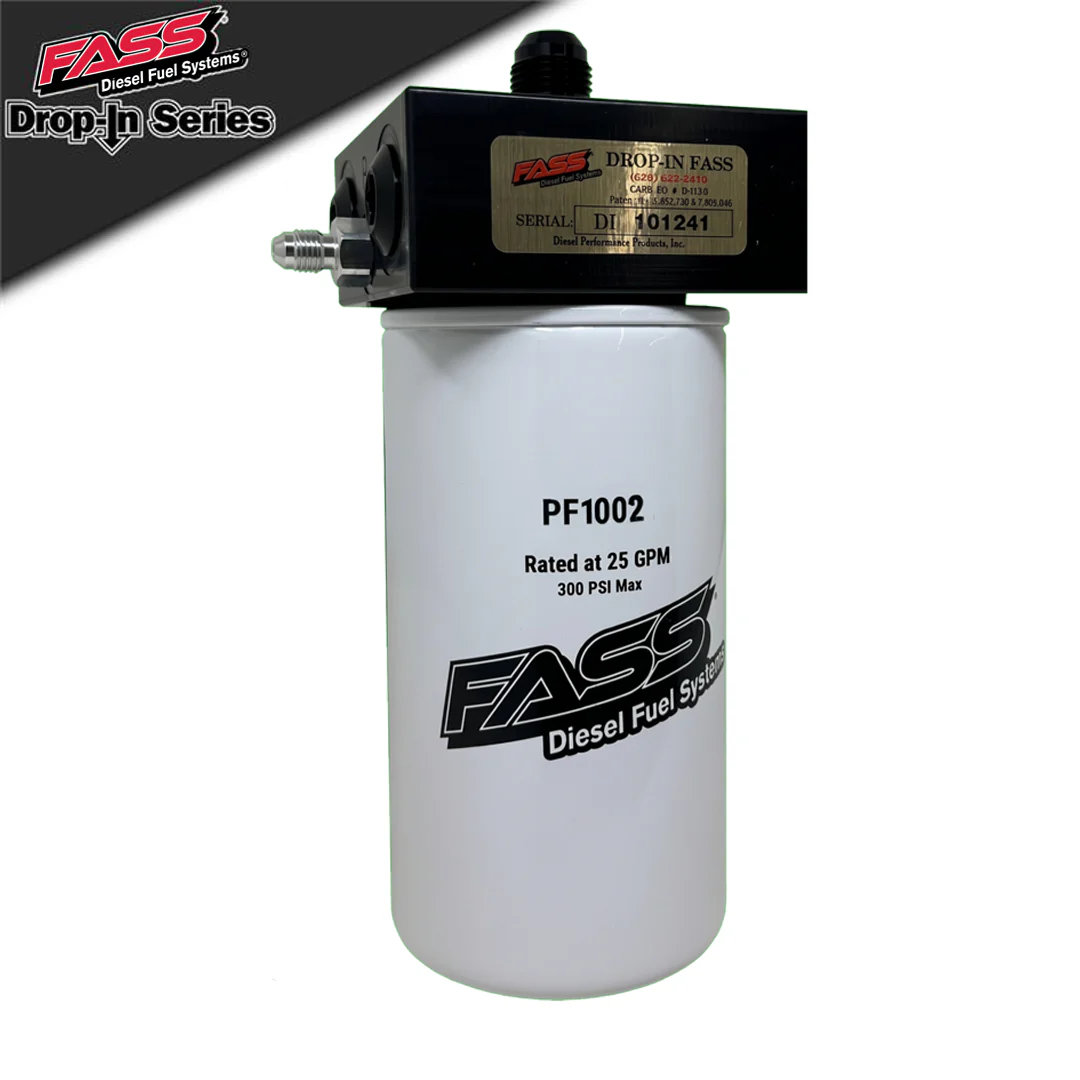

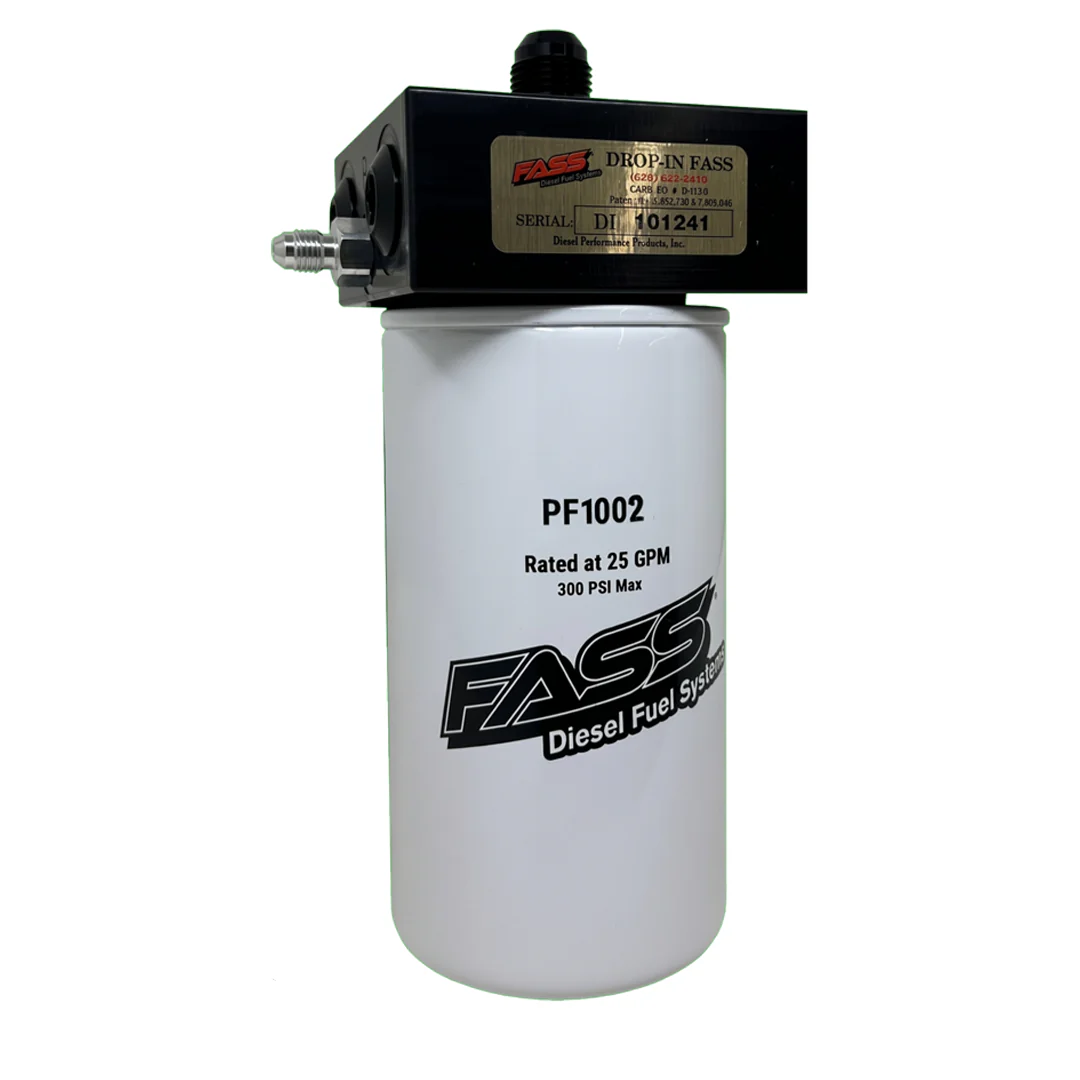

The FASS Drop-In Series Diesel Fuel System is the most cost-effective and easiest way to remove air vapor and entrained air from the fuel in your PACCAR MX-13. By eliminating that entrained air and vapor, the Drop-In Series protects your injection system from premature failure and can dramatically extend the life of your fuel injection components, while helping to optimize MPG (results will vary), restore horsepower, and sharpen throttle response.

It is a true plug-and-play, 100% drop-in upgrade that installs in an hour or less with no cutting, wiring, or additional modifications, making it an excellent choice for heavy equipment OEMs and fleets alike.

Part Number: DIFSHD5001

Features

• Extremely flexible mounting: fuel inlet ports can be used on either side, air separation ports can be used on either side, with a single outlet port on top of the filter base
• 4x SAE 10 (O-Ring Boss) fuel inlet ports
• 1x SAE 10 (O-Ring Boss) fuel outlet port
• 2x 1/4" Male JIC air separation ports
• 2x 1/8-27 NPT fuel inlet pressure ports
• Increases the lubricity of the fuel by at least 10% by removing entrained air and air vapor
• Extends the life of fuel injection system components
• 100% drop-in, no additional modifications needed
• Can be used in addition to OEM filtration or as the final filtration for the injection system
• Machined in the USA from 6061-T6 billet aluminum
• Type 3 hardcoat anodized black for corrosion resistance
• 300 PSI max pressure rating when equipped with the PF1002
• 500 GPH max flow rate

Notes

• Fits PACCAR MX-13, EPA 13 and EPA 24 engines
• True plug-and-play: installs in an hour or less with no cutting, wiring, or modifications
